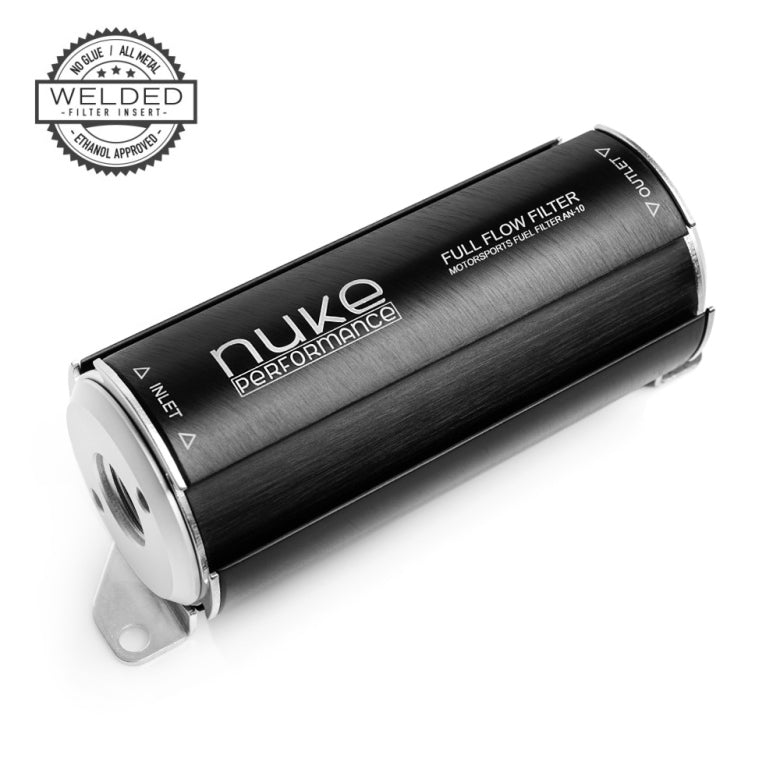

Nuke Stainless Steel Fuel Filter 10 micron AN-10

SKU: SCR NUK0054

$453.50

Only 3 pieces in stock!

Nuke Performance high flow inline fuel filters with integrated stainless steel brackets, available in 10 and 100-micron filter elements in both cellulose and stainless steel.
This lightweight, easy to install fuel filter is equipped with either a classic cellulose filter element for petrol or with the unique Nuke Performance welded fuel filter insert that is 100% proof for alcoholic fuels such as ethanol.

Unique design with integrated stainless steel brackets
Safe for all types of fuels, including ethanol and methanol
Available with welded stainless steel filter elements
Now with AN-10 ORB, for the highest possible flow
Over 60 sq. inches of filtering area
750 LPH, high flow with close to no flow loss
Available with both 10 and 100-micron inserts

Nuke Performance Fuel Filter Slim 10 / 100 micron AN-10 Specifications:

10-micron cellulose Part #: 200-02-201 (insert # 200-10-101)
10-micron stainless steel Part #: 200-02-203 (insert # 200-10-105)
100-micron stainless steel Part #: 200-02-202 (insert # 200-10-102)
Fuel compatibility: Gasoline, Methanol, Ethanol, Diesel*
Length: 148mm (5.82")
Height: 68mm (2.67”)
Width: 65mm (2.56")
Hole pattern: M6 - CC 156mm (6.14")
Inlet thread: AN-10 ORB, view range
Outlet thread: AN-10 ORB, view range
Weight: 720g - 990g (1.5-2.2lb)*
Filter area: 60 sq. in
Work pressure / Max pressure: 8 BAR (116 PSI) / 21 BAR (305 PSI)
Flow capacity: 750 LPH
Pressure drop: ≈0.15 BAR (≈2.17 PSI)
* depending on fuel filter version

Nuke Performance Fuel Filter 10 / 100 micron AN-10 Includes:
1 x Fuel Filter housing with AN-10 ORB threads
1 x Fuel Filter insert of choice
