Baffled Oil Catch Can / Tank 500ml

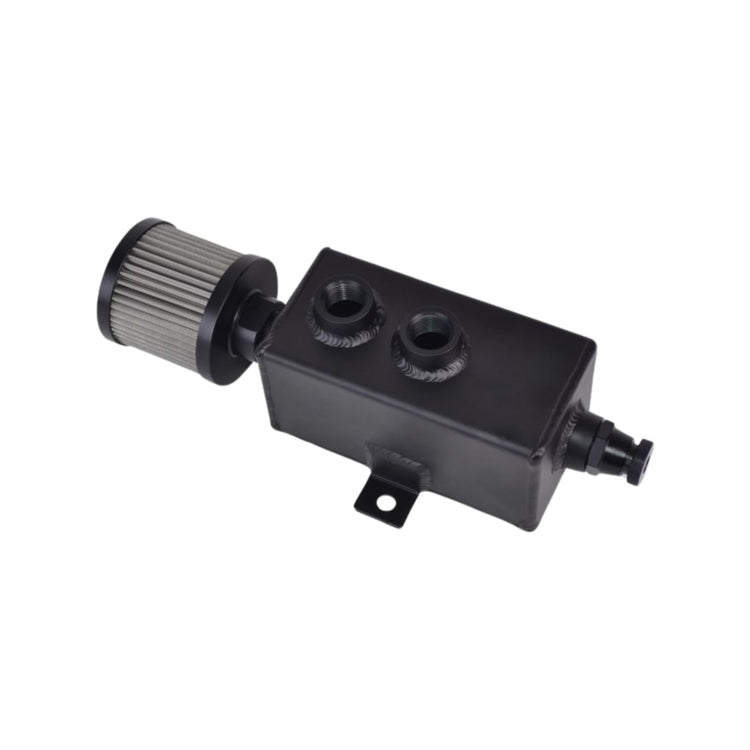

Matte Black Aluminium Oil Catch Tank 500ml with split chambers/baffled design

Most modern vehicles use a Positive Crankcase Ventilation system which is designed to regulate and remove fumes from the engine crankcase, and to alleviate crankcase pressure which could cause oil leaks or seal damage. It’s a way for gases to escape in a controlled manner from the crankcase of an internal combustion engine.
Usually, the system is designed to recirculate the vented pressure back into the air intake to ensure 100% accurate measurements from the air flow meter,
A catch can has the option to vent the gases to atmosphere through the breather pictured, or remove the breather and attach a fitting to reconnect it to the intake system,

The benefit of having the catch can in this system is that as the gas flows into the catch can it is caught up in the baffling, causing any oil that has been caught in the gas to condense and drop to the bottom of the tank, this eliminates the chance of having oil in your intake pipes and being burnt alongside fuel inside the combustion chamber,

• Fits any vehicle, 100% universal
• Measurements 160x80x80mm
• High-Quality Aluminium
• Capacity: 500ML Baffle Can
• -10 A/N fitting ports
• 2 fittings in/out

• Breather Filter
• Oil Catch Can
• Screw in drain fitting

We offer the barb fittings for $24.99 to screw into the side of these under the title " -10 AN Flare to Barb Straight " in the Website

Scarles™ offers a range of oil coolers ranging from 7 to 15 rows long, A perfect addition while upgrading your oil system.
