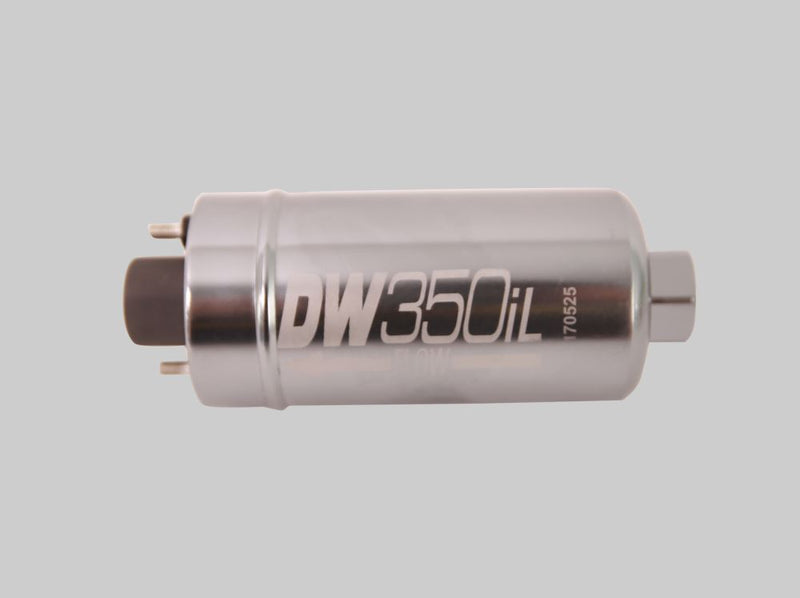

DW350iL, 350lph in-line external fuel pump
The DW350iL is engineered for high flow at high pressure. The pump is rated at 350lph at 40psi and maintains over 300lph at 70psi. This flat flow curve is a result of combining a high torque motor and a roller-vane pumping mechanism, High flow at high pressure is a must for turbo and supercharged applications. Plumbing is easy with the -8AN ORB inlet and outlet. The 350iL is compatible with ethanol blended fuels but is NOT compatible with methanol or diesel fuels. All DW fuel pumps are backed by a 3-yr no-fault warranty.
DeatschWerks in-line fuel pumps utilize roller-vane technology, allowing a flatter flow curve, which means more flow at higher pressures, a must for turbo and supercharged applications. Along with higher flow rates, DW350iL come with AN ORB female fittings on the inlet and outlet to easily incorporate fuel lines, an anodized aluminum body, two t-bolt mounting brackets with rubber isolators, and rubber boots to protect the power terminals.
The DeatschWerks in-line pumps have been engineered to fit The DW2.5L and DW3.5L modular surge tanks which provide reserve fueling capacity and dual pump capability? important in many high power motorsport applications.
This pump is capable of supporting over 700+ HP with the proper fuel lines.
Flow Rate: 350lph
Series: DW350iL
Mounting Type: inline
Listing is for:
1x DW350iL fuel pump
