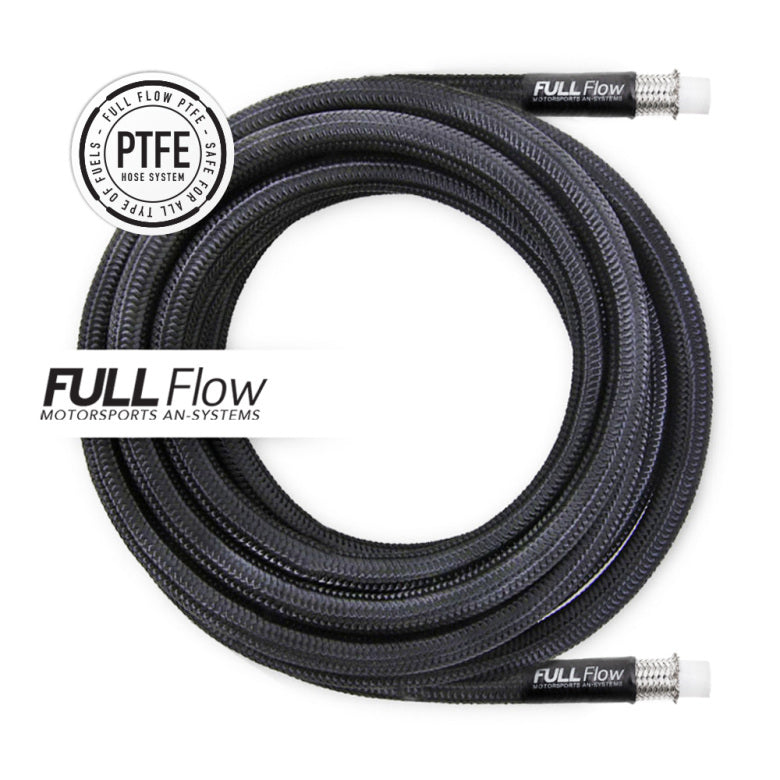

Black Nylon PTFE Stainless Braided Fuel Hose AN-10 1M



Nuke Performance Black Nylon PTFE Stainless Braided Fuel Hose AN-6 1 Metres of High-quality, lightweight, full flow fuel hose for PTFE hose ends.
Nuke Performance offers a wide range of PTFE hose ends and fuel hoses. With the PTFE lineup, you get a perfect solution for all types of fuels, including alcoholic fuels such as ethanol.

Safe for all type of fuels, including ethanol
For Nuke Performance Full-Flow PTFE hose ends
Much longer life span than an ordinary fuel hose

The wide selection of hose ends from Nuke Performance is of the highest possible quality and is available in AN-6 to AN-12 size and in a variety ranging from straight to 180-degree versions. The Full-Flow PTFE fuel hose works as inexpensive insurance for your injectors, filters, and fuel pumps.

Includes: 1M of AN10 PTFE Fuel Hose

Nuke Performance PTFE Hose End / Fuel Hose Specifications

AN-10 Hose Series #: 820-02-110 - 820-02-610
AN-10 Hose Ends #: 810-01-110 - 810-18-110
Fuel Compatibility: Gasoline, Methanol, Ethanol, E85, Racefuel, Diesel, Oil
Fuel Hose Inner Liner: PTFE (Teflon) inner liner
Fuel Hose Braiding: Stainless steel and nylon
Temperature Range: -70°C to 250°C (-94°F to 480°F)
Conductive Inner Liner: YES
For Motorsport Use: YES
AN10 Operating Pressure: 130 BAR (1900 PSI)
AN10 Burst Pressure: 410 BAR (6000 PSI)
AN10 Inner Diameter: 13.6mm (0.53")
AN10 Outer Diameter: 16.4mm (0.64")
