DIGITAL THERMATIC® FAN SWITCH KIT (Part #0444)

Our very own designed Digital Thermatic Fan Switch Kit can be used with our Thermatic Fans, EWP's and competitors Fans.

The sensor, a Temperature Probe (Air or Coolant Fitment) senses air temperature as it passes through the radiator with the sensor placed in the radiator fin section or the sensor can also be placed directly into the coolant system in combination with a Temperature Sensor Adaptor Kit (Part 0409) which is available from our store.

Sensor Wire length:

• 142cm in total (Wire from switch 112cm plus sensor connector 30cm)
• Post 15-Dec-2021 = 320cm total (Wire from switch 290cm plus sensor connector 30cm)

*The sensor wire has been increased to 320cm from the 15-Dec-2021, batch date 2021

The switch can run 1 or 2 fans and be used for 12 or 24 volt applications. It has an adjustable temperature range of 40ºC to 110ºC (104ºF to 230ºF) which can show Centigrade or Fahrenheit.

• Fan #1 will start once the temperature reaches the set temperature.
• Fan #2 (if applicable) will start operation 10 seconds after fan #1 starts.

The fan/s will operate until the temperature falls by 5°C below the set temperature.

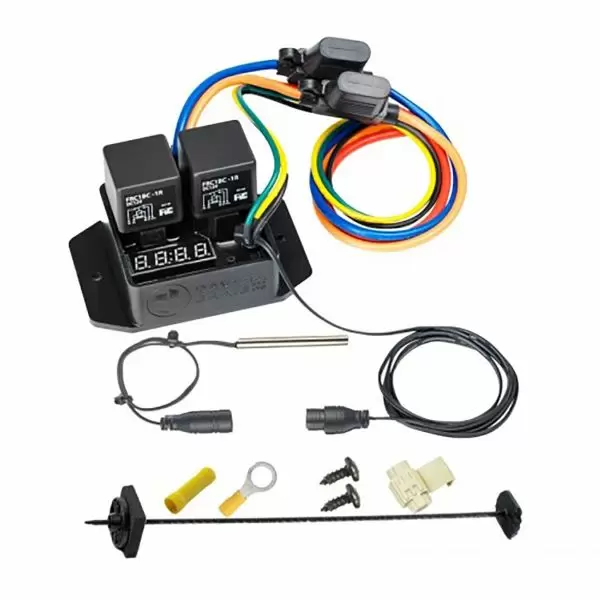

Listing is for:

• Digital Fan Switch IP66 x1

• Thermal Sensor Probe x1

• Mounting Kit for Thermal Sensor Probe x1

• Red 6mm Ring Terminal x1

• Blue 6mm Ring Terminal x1

• Blue Wire Joiner x2

• Self Tap Screw x2

• Instructions x1

• Max voltage: 12 to 27V (For 24V, relays need to be changed, not supplied in kit)

• Max current: Rated to 30 amps per Fan (Maximum 40amp per Fan) Unit comes with 2 x 30 amp fuses and 2 x 40 amp relays

• Relay setup: Dual relay

• Sensor Wire length: 142cm in total (Wire from switch 112cm plus sensor connector 30cm)

• Speed: Single speed, 10 second delay to start up the second fan

• Applications: Suitable for single and dual fan applications

• Screen Display: LED digital temp display, actual temp + set temp

• Temp Display: Centigrade or Fahrenheit

• Temp settings: 40°c to 110°c (104°F to 230°F)

• Temp setting: Push Button

• Circuit type: Pre-programmed micro controller

• Output wires: Batt + Batt - IGN, AC Clutch, Fan #1, Fan #2 Thermistor Probe

• Dimensions: 95x65x56 mm

*Note: if using this switch for use with our EWP's, it will not vary the speed of the pump in response to engine temperature but rather turn the pump on and off at your set temperature. For EWP control, we would recommend part number 8002 which can manage both the EWP and your Thermatic Fans.
