*NOTE* Currently is an order in product from GKTECH In Australia. Takes roughly 3-4 weeks

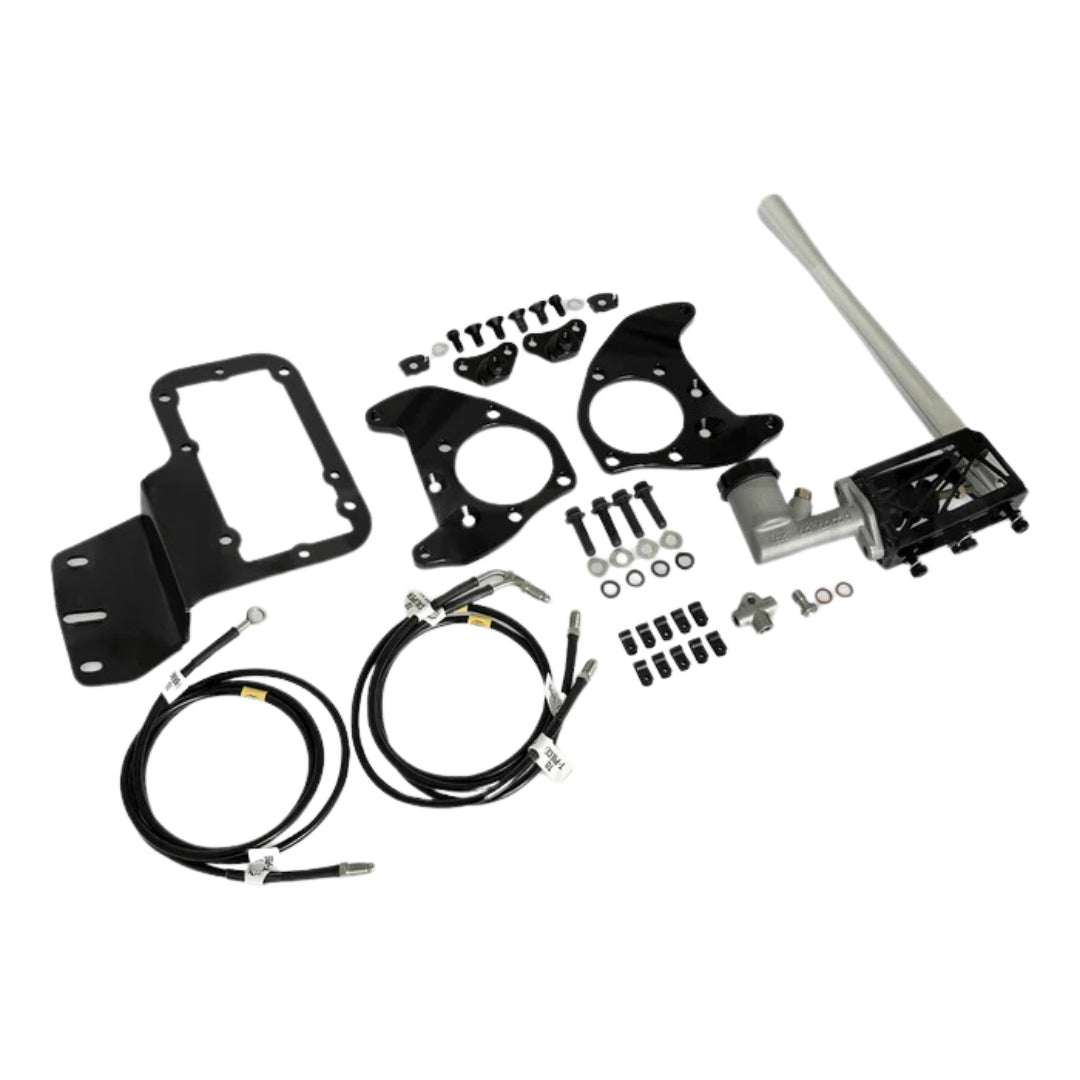

Listing is for:
1x Hydraulic Handbrake assembly
1x 86 / GR86 / BRZ dual caliper braided brake line kit
1x Bolt in handbrake mount - RHD
1x Handle (Let us know what colour you want)
Blue, Gold, Orange, Pink, Red, Purple, Black, Neo Chrome, Silver
1x Stand-alone 3/4" internal reservoir master cylinder
1x Dual caliper brackets (Let us know if you have GT/Brembo or GTS/BRZ Calipers
Avoid wasting time shopping around for all the individual parts, getting custom brake lines made up or running generic parts that may or may not work and use the only kit on the market that allows the use of the OEM handbrake.
This kit literally includes everything required other than the calipers. If you want your rear brakes to lock up in an instant, this kit is the way to go.
This kit has everything you need to set up a dual caliper hydro handbrake in your car, just BYO calipers.
The contents:
Handbrake assembly:
Self explanatory, this is the handbrake assembly that houses the lever and master cylinder.
Handbrake handle:
This beautifully crafted CNC machined aluminium lever has been designed with ergonomics in mind whilst being aesthetically pleasing. Eg. it is comfortable and it looks good. Choose between silver, black, blue, pink, purple, red, orange, gold or neo chrome.
Master cylinder:
Choose between 5/8" and 3/4". For most setups our recommendation is 5/8" but more on that below in the FAQ's.
Chassis specific handbrake mount:
Our chassis specific handbrake mounts are designed to ensure that our handbrake assembly can be fitted in an optimal position without the need to cut or drill into your transmission tunnel. These handbrake mounts are side mounted and require no trimming to the center console. This is an optional item and not required if you don't mind drilling holes into your car or want to mount the hydro within the center console.
Braided lines:
Made in-house in Australia using stainless steel fittings and using stainless steel braided line with a PTFE outer these lines are made specifically to suit Toyota 86/Subaru BRZ and even include the P clips to locate the line throughout your vehicle.
The Gktech brake lines have passed independent testing and are marked as complying to FMVSS106 standards, this means they continue to be ADR approved and are DOT compliant.
Dual caliper brackets:
The GKTECH dual caliper bracket is used to physically mount the secondary caliper. Our brackets are by far the best kit on the market and allow the use of the OEM handbrake (with the use of the bolt kit, sold separately). If you are running aftermarket knuckles that already have the provision for dual caliper brackets (like ours) then you don't need this bracket and it can be de-selected.
Select between GT/Brembo variant or GTS/BRZ specific bracket.
Dual caliper bracket handbrake bolt kit:
This is an optional add on piece to our dual caliper brackets that allows you to use the OEM handbrake setup for parking. Highly recommended!
Suis:
SUBARU
BRZ ZC6
BRZ ZD8
TOYOTA
GR86 ZN8
GT86 ZN6
*NOTE* Currently is an order in product from GKTECH In Australia. Takes roughly 3-4 weeks
Listing is for:
1x Hydraulic Handbrake assembly
1x 86 / GR86 / BRZ dual caliper braided brake line kit
1x Bolt in handbrake mount - RHD
1x Handle (Let us know what colour you want)
Blue, Gold, Orange, Pink, Red, Purple, Black, Neo Chrome, Silver
1x Stand-alone 3/4" internal reservoir master cylinder
1x Dual caliper brackets (Let us know if you have GT/Brembo or GTS/BRZ Calipers
Avoid wasting time shopping around for all the individual parts, getting custom brake lines made up or running generic parts that may or may not work and use the only kit on the market that allows the use of the OEM handbrake.
This kit literally includes everything required other than the calipers. If you want your rear brakes to lock up in an instant, this kit is the way to go.
This kit has everything you need to set up a dual caliper hydro handbrake in your car, just BYO calipers.
The contents:
Handbrake assembly:
Self explanatory, this is the handbrake assembly that houses the lever and master cylinder.
Handbrake handle:
This beautifully crafted CNC machined aluminium lever has been designed with ergonomics in mind whilst being aesthetically pleasing. Eg. it is comfortable and it looks good. Choose between silver, black, blue, pink, purple, red, orange, gold or neo chrome.
Master cylinder:
Choose between 5/8" and 3/4". For most setups our recommendation is 5/8" but more on that below in the FAQ's.
Chassis specific handbrake mount:
Our chassis specific handbrake mounts are designed to ensure that our handbrake assembly can be fitted in an optimal position without the need to cut or drill into your transmission tunnel. These handbrake mounts are side mounted and require no trimming to the center console. This is an optional item and not required if you don't mind drilling holes into your car or want to mount the hydro within the center console.
Braided lines:
Made in-house in Australia using stainless steel fittings and using stainless steel braided line with a PTFE outer these lines are made specifically to suit Toyota 86/Subaru BRZ and even include the P clips to locate the line throughout your vehicle.
The Gktech brake lines have passed independent testing and are marked as complying to FMVSS106 standards, this means they continue to be ADR approved and are DOT compliant.
Dual caliper brackets:
The GKTECH dual caliper bracket is used to physically mount the secondary caliper. Our brackets are by far the best kit on the market and allow the use of the OEM handbrake (with the use of the bolt kit, sold separately). If you are running aftermarket knuckles that already have the provision for dual caliper brackets (like ours) then you don't need this bracket and it can be de-selected.
Select between GT/Brembo variant or GTS/BRZ specific bracket.
Dual caliper bracket handbrake bolt kit:
This is an optional add on piece to our dual caliper brackets that allows you to use the OEM handbrake setup for parking. Highly recommended!
Suis:
SUBARU
BRZ ZC6
BRZ ZD8
TOYOTA
GR86 ZN8
GT86 ZN6
