*NOTE* Currently is an order in product from GKTECH In Australia. Takes roughly 3-4 weeks

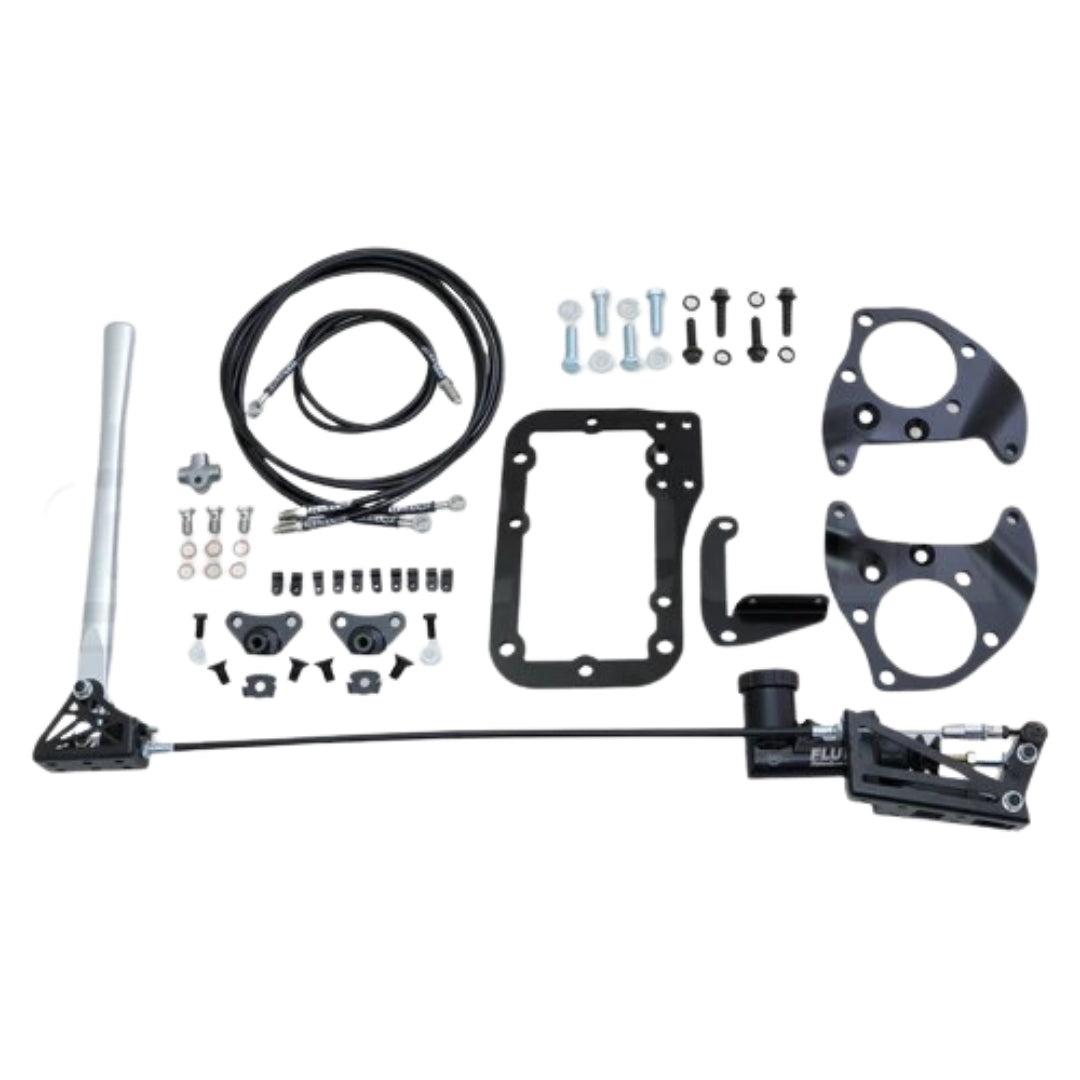

Listing is for:
1x Hydraulic handbrake assembly with remote lever
1x 86 / GR86 / BRZ dual caliper braided brake line kit
1x Stand-alone 5/8" internal reservoir master cylinder
1x Remote in console handbrake mount - RIGHT Side (RHD) or Remote in console handbrake mount - LEFT Side (LHD) (Let us know what side you want)
1x Handbrake Handle (Let us know what colour handle you want)

The GKTECH Hydraulic handbrake setup with remote lever allows for the fitment of a hydraulic handbrake lever in situations where a traditional hydro design cannot fit.
Whether it is because of the shape of the centre console, the parking brake, or the gear shifter, the remote hydro can be a solution for when a traditional style hydro isn't.

The remote hydro relocates the master cylinder to a secondary bracket connected by a sleeved cable. This secondary bracket is then located approximately 600mm behind the handle, out of the way.

By relocating the master cylinder this greatly reduces the size of the bracket at the handle end, allowing it to fit in more applications.

Cable length included is 555mm (this is the measurement between the handbrake cage and master cylinder bracket).

With our CNC machined aluminium handbrake handles the whole unit is lightweight although very strong after a significant amount of FEA to ensure loads were evenly distributed across the handbrake assembly.

The contents:

Handbrake assembly:
Self explanatory, this is the handbrake assembly that houses the lever and master cylinder.

Braided lines:
Made in-house in Australia using stainless steel fittings and using stainless steel braided line with a PTFE outer these lines are made specifically to suit Toyota 86/Subaru BRZ and even include the P clips to locate the line throughout your vehicle.

The Gktech brake lines have passed independent testing and are marked as complying to FMVSS106 standards, this means they continue to be ADR approved and are DOT compliant.

Master cylinder:
Choose between 5/8" and 3/4". For most setups our recommendation is 5/8" but more on that below in the FAQ's.

Chassis specific handbrake mount:
Our chassis specific handbrake mounts are designed to ensure that our handbrake assembly can be fitted in an optimal position without the need to cut or drill into your transmission tunnel.

Handbrake handle:

This beautifully crafted CNC machined aluminium lever has been designed with ergonomics in mind whilst being aesthetically pleasing. Eg. it is comfortable and it looks good. Choose between silver, black, blue, pink, purple, red, orange, gold or neo chrome.

Products in photo but not included in listing:

Dual caliper brackets:
The GKTECH dual caliper bracket is used to physically mount the secondary caliper. Our brackets are by far the best kit on the market and allow the use of the OEM handbrake (with the use of the bolt kit, sold separately). If you are running aftermarket knuckles that already have the provision for dual caliper brackets (like ours) then you don't need this bracket and it can be de-selected.

Select between GT/Brembo variant or GTS/BRZ specific bracket.

Dual caliper bracket handbrake bolt kit:
This is an add on piece to our dual caliper brackets that allows you to use the OEM handbrake setup for parking. Highly recommended!
