GKTECH REPLACEMENT PCML12TES BEARING (Order in)

SKU: SCR GKT0824

$42.50

*NOTE* Currently is an order in product from GKTECH In Australia. Takes roughly 3-4 weeks

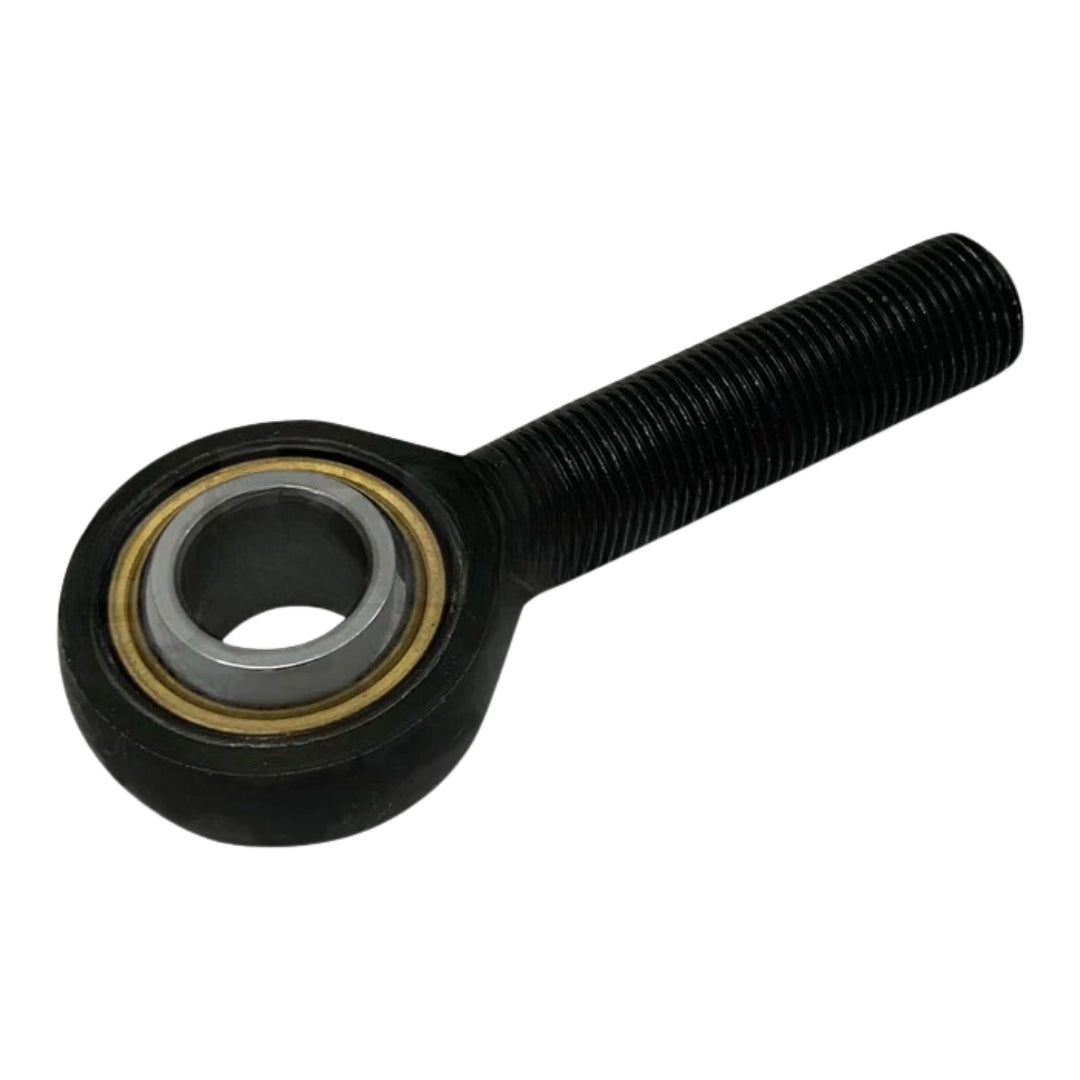

Replacement PCML12TES bearing (can also be replaced with PCML12T, non extended version and PCML12TE)

Used in the following GKTECH products:
Super Lock LCA's (SKU = S13X-944X, S13X-3974, S145-035X, S145-3065)
V3 and V4 Rear camber arms (SKU = REAR-CMBR and STRT-CMBR)
V3 and V4 Rear toe arms (SKU= S13X-TOEX and S145-TOEX)
V3 and V4 Rear traction rods (SKU = REAR-TRTN when used in S14/S15/R33/R34 subframe)
R32 front upper camber arms (SKU= R32X-FUCA)
R33 front upper camber arms (SKU= R33X-FUCA)
V2 Rear LCA's (SKU=REAR-LCAX)
V2 High clearance lower control arms (SKU = BUDG-2045, BUDG-4065)
V3 and V4 Front caster rods (SKU = S13X-CSTR and S145-CSTR)
Z33/350z Front upper camber arms (SKU = Z33X-FUCA)
Z33/350z Rear camber arms (SKU = 350Z-CMBR)
Z33/350z Front super lock arms (SKU = Z33X-FLCA)
Z33/350z Toe arms (SKU=350Z-TOEX)

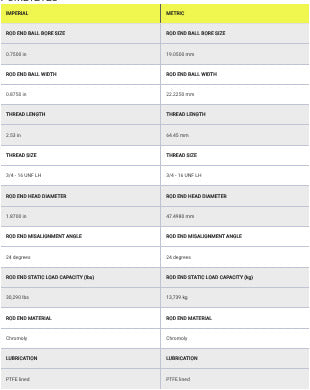

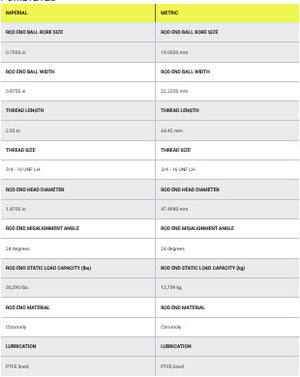

IMPERIAL: METRIC:
ROD END BALL BORE SIZE: ROD END BALL BORE SIZE:
0.7500 in 19.0500 mm
ROD END BALL WIDTH: ROD END BALL WIDTH:
0.8750 in 22.2250 mm
THREAD LENGTH: THREAD LENGTH:
2.53 in 64.45 mm
THREAD SIZE: THREAD SIZE:
3/4 - 16 UNF LH 3/4 - 16 UNF LH
ROD END HEAD DIAMETER: ROD END HEAD DIAMETER:
1.8700 in 47.4980 mm
ROD END MISALIGNMENT ANGLE: ROD END MISALIGNMENT ANGLE:
24 degrees 24 degrees
ROD END STATIC LOAD CAPACITY (lbs): ROD END STATIC LOAD CAPACITY (kg):
30,290 lbs 13,739 kg
ROD END MATERIAL: ROD END MATERIAL:
Chromoly Chromoly
LUBRICATION: LUBRICATION:
PTFE lined PTFE lined
