*NOTE* Currently is an order in product from GKTECH In Australia. Takes roughly 3-4 weeks

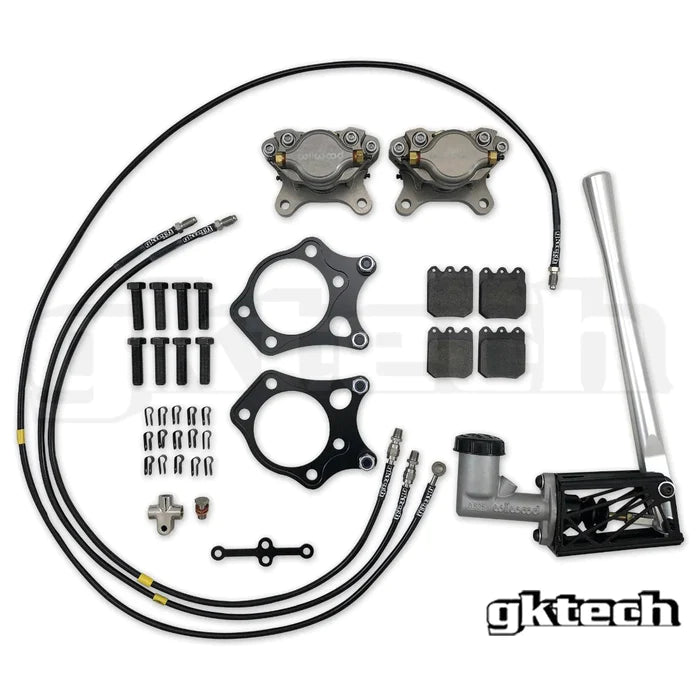

Listing is for:
1x Hydraulic Handbrake assembly
1x Stand alone SS braided brake line kit
1x Pair of Wilwood DynaPro dual piston calipers
1x Wilwood BP-10 brake pads (set of 4 pads for 2 calipers)
1x S-chassis dual caliper brackets to suit Wilwood caliper (pair)
1x Handbrake handle (silver, black, blue, pink, purple, red, orange, gold or neo chrome) Let us know what colour you want
1x Stand-alone 5/8" internal reservoir master cylinder
Avoid wasting time shopping around for all the individual parts, getting custom brake lines made up, or running generic parts that may or may not work.
The GKTECH S-chassis dual calliper hydraulic handbrake setup is the only COMPLETE kit available anywhere. Literally, everything required is included and it's a range of GKTECH and Wilwood components. If you have an S-chassis and you want your rear brakes to lock up in an instant, this kit is the way to go.
The contents:
Handbrake assembly:
Self explanatory, this is the handbrake assembly that houses the lever and master cylinder.
Handbrake handle:
This beautifully crafted CNC machined aluminium lever has been designed with ergonomics in mind whilst being aesthetically pleasing. Eg. it is comfortable and it looks good. Choose between silver, black, blue, pink, purple, red, orange, gold or neo chrome.
Master cylinder:
Choose between 5/8" and 3/4". For the Wilwood 2 pot calipers our recommendation is 5/8" but more on that below in the FAQ's.
Dual caliper brackets:
The bracket that allows the Wilwood caliper to fit on your OEM knuckle. Note: can only be used with OEM steel knuckles. Will not work with GT-R, R34 or Z32 aluminum knuckles.
If you are running the Gktech knuckles then you wouldn't need the bracket as the knuckles accommodate for the Wilwood calipers already.
Braided lines:
Made in-house in Australia using stainless steel fittings and using stainless steel braided line with a PTFE outer these lines are made specifically to suit Nissan S chassis and even include the P clips to locate the line throughout your vehicle.
The GKTECH braided brake lines are assembled using stainless steel fittings and hose that consists of a Teflon inner tube wrapped in stainless steel braid and a PVC outer coating for protection. The brake lines have been independently tested to comply with FMVSS106 standards for brake hoses. This makes the lines ADR approved in Australia and they are marked as such on the brake line assemblies.
The FMVSS106 testing procedure that the lines have been tested against includes the following tests:
- 370lbs pull test
- 35 hour whip test
- 7000psi burst test
- -45degC to 146degC temperature tests
- 24 hour salt corrosion resistance test
Brake calipers:
We have opted for the Wilwood 120-10188 caliper for this setup. They are a small but bitey caliper and only caliper that we found to work with the OEM 9mm thick rotors.
Brake pads:
Over the years we have tested many brake pads with these calipers and ended up at the Wilwood BP-10's. They're economical, readily available, very bitey and last.
Optional items in the photo that are sold separately:
- S13/180SX Right/Left side of console
- S14 Silvia Left side of console
- S14 Silvia Right side of console
NOTE: If you are running standard hubs/knuckles the 5mm axle spacer is required
NOTE#2: Will NOT fit European delivered S-chassis' without the use of JDM or USDM calipers/rotors.
NOTE#3: Designed to be used with standard S-chassis 9mm rear rotors
NOTE#4: The wilwood calipers have a mounting hole of 3/8inch (9.52mm) and the studs used on our brackets are 10mm and as such the 2 mounting holes needs to be drilled out on the calipers to 10mm. This is very much a DIY kit and is easy to do.
NOTE#5: The brackets themselves will NOT fit the Gktech rear drop knuckle
NOTE#6: For the axle spacers, we can only confirm fitment on OEM wheel bearings
Suits:
NISSAN
CEFIRO A31
S13 CA18 180SX
S13 CA18 SILVIA
S13 SR20 180SX
S13 SR20 SILVIA
S14 200SX/SILVIA
S15 200SX/SILVIA
*NOTE* Currently is an order in product from GKTECH In Australia. Takes roughly 3-4 weeks
Listing is for:
1x Hydraulic Handbrake assembly
1x Stand alone SS braided brake line kit
1x Pair of Wilwood DynaPro dual piston calipers
1x Wilwood BP-10 brake pads (set of 4 pads for 2 calipers)
1x S-chassis dual caliper brackets to suit Wilwood caliper (pair)
1x Handbrake handle (silver, black, blue, pink, purple, red, orange, gold or neo chrome) Let us know what colour you want
1x Stand-alone 5/8" internal reservoir master cylinder
Avoid wasting time shopping around for all the individual parts, getting custom brake lines made up, or running generic parts that may or may not work.
The GKTECH S-chassis dual calliper hydraulic handbrake setup is the only COMPLETE kit available anywhere. Literally, everything required is included and it's a range of GKTECH and Wilwood components. If you have an S-chassis and you want your rear brakes to lock up in an instant, this kit is the way to go.
The contents:
Handbrake assembly:
Self explanatory, this is the handbrake assembly that houses the lever and master cylinder.
Handbrake handle:
This beautifully crafted CNC machined aluminium lever has been designed with ergonomics in mind whilst being aesthetically pleasing. Eg. it is comfortable and it looks good. Choose between silver, black, blue, pink, purple, red, orange, gold or neo chrome.
Master cylinder:
Choose between 5/8" and 3/4". For the Wilwood 2 pot calipers our recommendation is 5/8" but more on that below in the FAQ's.
Dual caliper brackets:
The bracket that allows the Wilwood caliper to fit on your OEM knuckle. Note: can only be used with OEM steel knuckles. Will not work with GT-R, R34 or Z32 aluminum knuckles.
If you are running the Gktech knuckles then you wouldn't need the bracket as the knuckles accommodate for the Wilwood calipers already.
Braided lines:
Made in-house in Australia using stainless steel fittings and using stainless steel braided line with a PTFE outer these lines are made specifically to suit Nissan S chassis and even include the P clips to locate the line throughout your vehicle.
The GKTECH braided brake lines are assembled using stainless steel fittings and hose that consists of a Teflon inner tube wrapped in stainless steel braid and a PVC outer coating for protection. The brake lines have been independently tested to comply with FMVSS106 standards for brake hoses. This makes the lines ADR approved in Australia and they are marked as such on the brake line assemblies.
The FMVSS106 testing procedure that the lines have been tested against includes the following tests:
- 370lbs pull test
- 35 hour whip test
- 7000psi burst test
- -45degC to 146degC temperature tests
- 24 hour salt corrosion resistance test
Brake calipers:
We have opted for the Wilwood 120-10188 caliper for this setup. They are a small but bitey caliper and only caliper that we found to work with the OEM 9mm thick rotors.
Brake pads:
Over the years we have tested many brake pads with these calipers and ended up at the Wilwood BP-10's. They're economical, readily available, very bitey and last.
Optional items in the photo that are sold separately:
- S13/180SX Right/Left side of console
- S14 Silvia Left side of console
- S14 Silvia Right side of console
NOTE: If you are running standard hubs/knuckles the 5mm axle spacer is required
NOTE#2: Will NOT fit European delivered S-chassis' without the use of JDM or USDM calipers/rotors.
NOTE#3: Designed to be used with standard S-chassis 9mm rear rotors
NOTE#4: The wilwood calipers have a mounting hole of 3/8inch (9.52mm) and the studs used on our brackets are 10mm and as such the 2 mounting holes needs to be drilled out on the calipers to 10mm. This is very much a DIY kit and is easy to do.
NOTE#5: The brackets themselves will NOT fit the Gktech rear drop knuckle
NOTE#6: For the axle spacers, we can only confirm fitment on OEM wheel bearings
Suits:
NISSAN
CEFIRO A31
S13 CA18 180SX
S13 CA18 SILVIA
S13 SR20 180SX
S13 SR20 SILVIA
S14 200SX/SILVIA
S15 200SX/SILVIA
