*NOTE* Currently is an order in product from GKTECH In Australia. Takes roughly 3-4 weeks

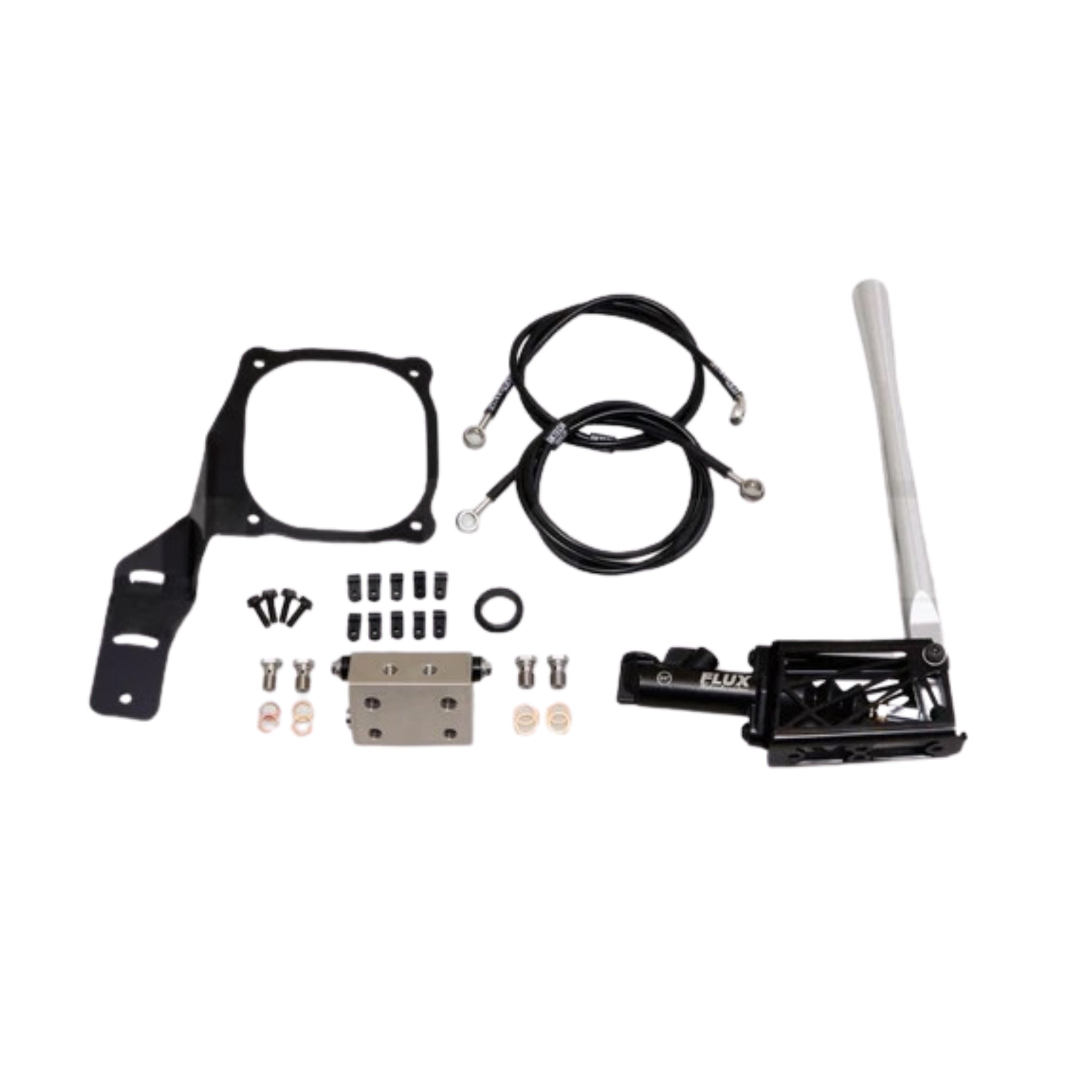

Listing is for:
1x Z33 350Z / V35 Skyline ABS delete manifold
1x Z33 350Z / V35 In-line hydraulic handbrake line kit
1x Hydraulic Handbrake assembly
1x IN-LINE 3/4" master cylinder
1x Handbrake Handle (Let us know what colour)

Setting up a standalone hydraulic handbrake kit can be expensive and require more commitment than what you wanted, which is why we have created an in-line hydraulic handbrake kit.

The in-line hydraulic handbrake kits are significantly cheaper to setup as you don't have the additional cost of more lines, dual caliper brackets and an additional pair of calipers. Unsprung weight is also reduced compared to a dual caliper hydraulic kit.

Not to mention, the ABS module Nissan uses are renown for being unpredictable, particularly when on track.

Which is why we have replaced the OEM unit with the GKTECH ABS Delete manifold block, which not only removes the ABS but allows the OEM brake system to accept the in-line master cylinder without any issues.

- For race cars only, however, no permanent modifications are required.

The contents:

ABS Manifold:
This is a direct replacement of your current OEM ABS unit that the braided brake lines we offer will install to.

Braided lines:
Made in-house in Australia using stainless steel fittings and using stainless steel braided line with a PTFE outer these lines are made specifically to suit Nissan S/R chassis' and even include the P clips to locate the line throughout your vehicle.

The Gktech brake lines have passed independent testing and are marked as complying to FMVSS106 standards, this means they continue to be ADR approved and are DOT compliant.

Handbrake assembly:
Self explanatory, this is the handbrake assembly that houses the lever and the in-line master cylinder.

Master cylinder:
Choose between 5/8" and 3/4". For non Brembo calipers our recommendation is 5/8" and for the Brembo calipers we recommend the 3/4". More on that below in the FAQ's.

Handbrake handle:
This beautifully crafted CNC machined aluminium lever has been designed with ergonomics in mind whilst being aesthetically pleasing. Eg. it is comfortable and it looks good. Choose between silver, black, blue, pink, purple, red, orange, gold or neo chrome.

Additional Products in the listing photo (Not included in this listing):
-350Z/G35/V35 INSIDE trim mount - LEFT side
-350Z/G35/V35 INSIDE trim mount - RIGHT side
-G35/V35 OUTSIDE trim mount - RIGHT side of console
-G35/V35 OUTSIDE trim mount - LEFT side of console
-350z handbrake OUTSIDE trim mount - LEFT side of console
-350z handbrake OUTSIDE trim mount - RIGHT side of console

Chassis specific handbrake mount:
Our chassis specific handbrake mounts are designed to ensure that our handbrake assembly can be fitted in an optimal position without the need to cut or drill into your transmission tunnel. We have made 2 different position variants in addition to LHD or RHD specific.

Inside trim = mounts inside/within the center console itself, this will require trimming to the center console for the lever.

Outside trim = mounts outside the center console itself, no modifications required to the trim when used on either the left and right-hand side.

Our optional chassis specific handbrake mounts make installation of the assembly a bolt in affair. More info on the brackets can be seen here: Z33 350Z CAR SPECIFIC HANDBRAKE MOUNT

Note that the additional handbrake base support brace will not fit V35/G35's

NOTE: Will only work with the specific style of ABS unit that we have shown here. Please check your specific ABS unit before purchasing as Nissan have used 2 different variants across the years.

NOTE #2: Removing the ABS unit will mean that ABS and TCS will no longer work

NOTE #3: Console version will require some trimming under the center console and require you to cut a hole for the lever.

NOTE #4: Outside mount when used on the drivers side may have contact with the OEM seat when the seating position is close to the steering wheel, the OEM seat can still be used but can cause damage with prolonged use.

NOTE #5: Will NOT fit on automatic vehicles. The automatic tunnel differs to the manual tunnel.

Suits:
NISSAN
V35 SKYLINE
Z33 350Z
