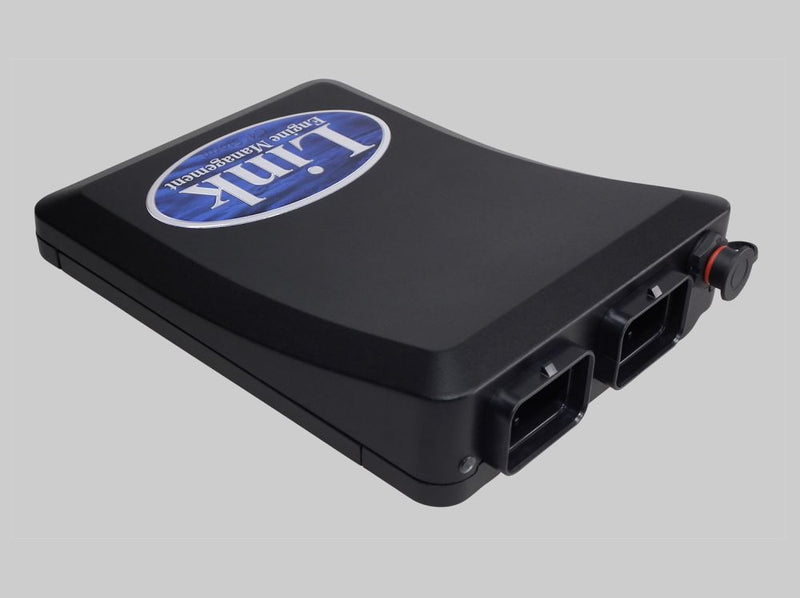

Link ECU G4X Mazda RX7 Series 7
SKU: SCR LNK026
The Link G4X RX7Link (S7) RX7S7-X PlugIn ECU fits the Mazda RX7 Series 7-8. The ECU PCB fits discretely inside the original factory enclosure.
Installation of our RX7 PlugIn ECU is a breeze, with no alteration of the factory wiring loom required.
A built-in connector (or pins in some models) provides additional inputs and outputs such as oil pressure inputs or anti-lag / logging switches.
Factory features are supported - see Features for any exceptions. Includes oil pump control, single turbo only.
This ECU will support naturally aspirated, parallel twin or single turbo configurations.
G4X PlugIn Key Features (where applicable)
-Up to 6D fuel and ignition mapping
-Precision closed loop cam control (four cam, independent control)
-Sequential fuel delivery
-Digital triggering, all OEM patterns
-Rotary - up to four rotors, fully sequentially staged injection and sequential ignition
-OEM idle hardware supported
-5D boost control with three switchable tables
-Motorsport features - antilag, launch, flat shift
-Continuous barometric correction (on board)
-QuickTune - automated fuel tuning
-Individual cylinder correction
-USB tuning cable included
-Stats recording into on-board memory
-Gear compensations for spark, boost and fuel
-Real time selectable dual fuel, ignition and boost maps
-Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
-Boost control referenced to gear, speed or throttle position
-512MB data logging capability
-Knock with "windowing"
