Nissan Skyline Rb25det Bolt on Turbo

This turbo has T3 turbo flange, which means it will bolt up to many Nissan Rb20 , Rb25 and TD42 vehicles. It will also fit onto any other T3 Turbo flanged exhaust manifolds on other vehicles. Also turbos are all totally universal so in-case you don't have a Nissan or a T3 flanged manifold but still want this turbo, they are very easy to adapt onto any other manifold through simple welding. This is a perfect replacement or upgrades turbo for your vehicle. Turbos hugely increase horsepower and can be fitted onto most vehicles no problems. Different size turbos will give different results, small turbos generally spoil up quicker giving quicker response but less top end power or larger turbos take longer to spoil up but high top end power.

* Factory turbo replacement for your vehicle
* Rated at 360HP+ max.
* T3 Flange, TD05 Core setup
* Perfect upgrade for your Nissan Skyline Rb20det or Rb25det vehicle from your standard one. Suited for R32 R33 & R34 Vehicles
* HIGHEST Quality SCARLES Turbo. NOT MADE IN CHINA!
* BOLT ON TO YOUR NISSAN Skyline HUGE POWER INCREASE
* Actuator: 0.2~2 BAR (May need to get in contact with us to order in the correct actuator your after)

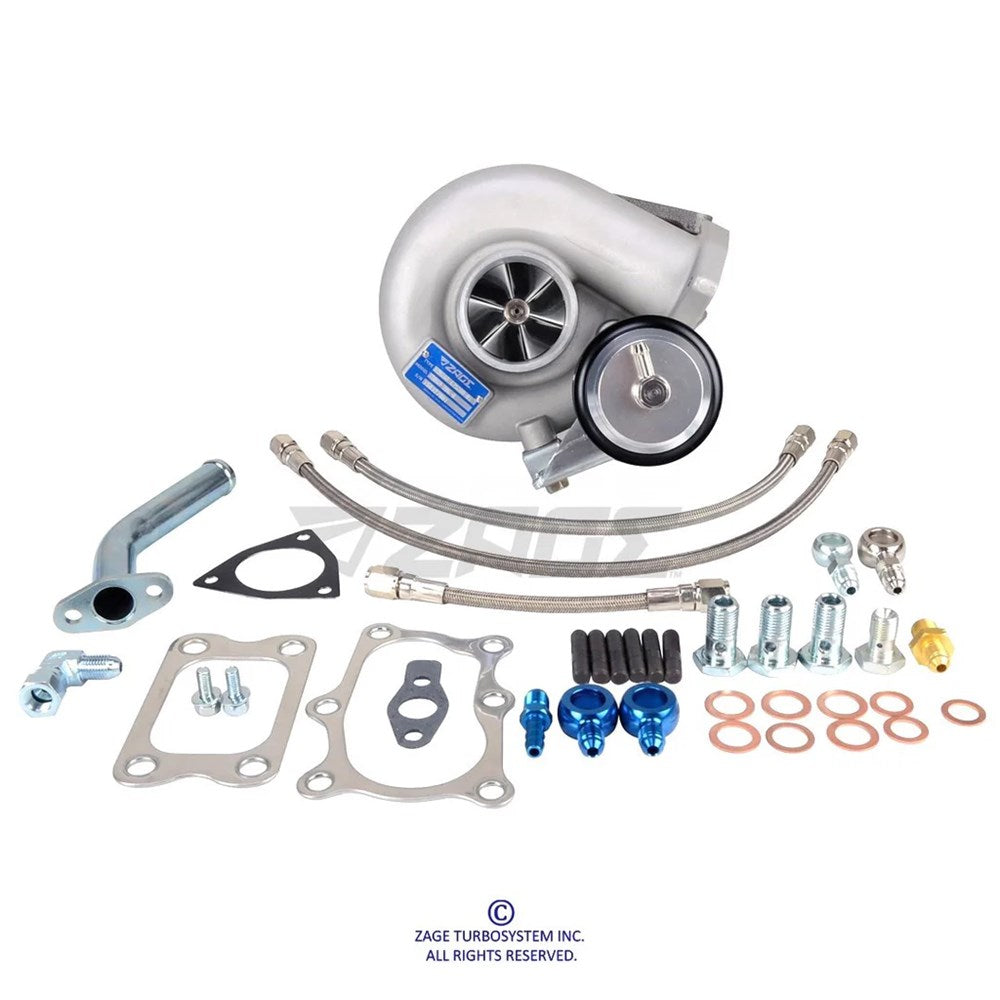

* Comes with Gaskets, braided feed and water lines, Fittings and Drain

Turbine:

- TD06H Turbine Wheel
- 58.8/67.1mm Diameter
- A/R 57
- Nozzle Area 8cm2
Compressor:
- ZG3 Wheel
- 54.8/76.2mm Diameter
