*Note* This product is currently order in from the Parts shop max Taiwan Factory. Roughly takes 1-2 weeks if in stock with Taiwan. You can check stock worldwide on the PSM website https://store.partsshopmax.com/ . If Taiwan is out of stock we can order from USA which may increase the price due to shipping costs from the states
Listing is for:
1x Set of coilovers

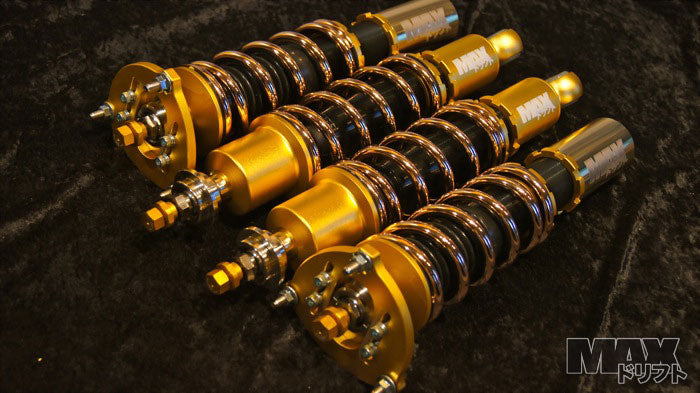

MAX Competition coilovers for Toyota AE86.
~True rear coilover conversion eliminates your separate rear spring and shock. Coilovers allow easier tuning and adjustment as well as a wide range of spring rate options.
~Competition coilovers for AE86 are specially designed to be shorter to allow low ride height without having to place a custom order. Standard Spring rates are 8kg/mm in the front, 6kg/mm in the rear . But wide range of spring rates available by request.
~ Fully threaded damper & lower mount allows vehicle height to be adjusted independent of the spring preload and without using a helper spring. We suggest Zero spring preload.
~ Large range of rebound adjustment is available in 32 clicks with the turn of a knob on the top of each damper
~Replaceable & Custom Tunable Damper
~Low torque pillowball top mounts front and rear
~ Billet T6061 lightweight aluminum Lower mounts with rear lower urethane bushing
~ All aluminum components are hard anodized
~ Front Camber plates with long slots for lots of camber adjustability.
~Lifetime manufacturer defect warranty
~ True coil over damper rear conversion
~ *requires welding on the front lower mounts to your spindle & rear upper mount bearing housing welds to the OEM rear upper mount.
Use 1-5/8" hole saw to modify rear shock towers. See installation example here: http://www.partsshopmax.com/e107_plugins/forum/forum_viewtopic.php?7155.40
*Note* This product is currently order in from the Parts shop max Taiwan Factory. Roughly takes 1-2 weeks if in stock with Taiwan. You can check stock worldwide on the PSM website https://store.partsshopmax.com/ . If Taiwan is out of stock we can order from USA which may increase the price due to shipping costs from the states
Listing is for:
1x Set of coilovers
MAX Competition coilovers for Toyota AE86.
~True rear coilover conversion eliminates your separate rear spring and shock. Coilovers allow easier tuning and adjustment as well as a wide range of spring rate options.
~Competition coilovers for AE86 are specially designed to be shorter to allow low ride height without having to place a custom order. Standard Spring rates are 8kg/mm in the front, 6kg/mm in the rear . But wide range of spring rates available by request.
~ Fully threaded damper & lower mount allows vehicle height to be adjusted independent of the spring preload and without using a helper spring. We suggest Zero spring preload.
~ Large range of rebound adjustment is available in 32 clicks with the turn of a knob on the top of each damper
~Replaceable & Custom Tunable Damper
~Low torque pillowball top mounts front and rear
~ Billet T6061 lightweight aluminum Lower mounts with rear lower urethane bushing
~ All aluminum components are hard anodized
~ Front Camber plates with long slots for lots of camber adjustability.
~Lifetime manufacturer defect warranty
~ True coil over damper rear conversion
~ *requires welding on the front lower mounts to your spindle & rear upper mount bearing housing welds to the OEM rear upper mount.
Use 1-5/8" hole saw to modify rear shock towers. See installation example here: http://www.partsshopmax.com/e107_plugins/forum/forum_viewtopic.php?7155.40
PSM Competition Coilovers for AE86 Corolla and Levin 8kg F 6kg R (Order in)
- Regular price
- $2,599.99
- Sale price
- $2,599.99
