About
Listing is for:
1x Driveshaft Center Support carrier bearing
We could not justify an $800 one piece driveshaft at the shop M3s power level and also couldn't put in another thin rubber OEM center support to replace the torn one with all the drift clutch kicking, so we made this billet part to hold a top of the line FAG brand bearing instead.
Tons of you appeared to be in the same situation so we made some more for you in 6061 aluminum with gold anodizing & laser marks to indicate which side faces forward depending on if you will install it into an E36 or E46.
Comptible with M and Non-M models excluding AWD & 330d.
The affordable bearing can be replaced separately from the housing, if needed by removing lock ring and knocking the bearing out of the housing.
Contact us if a bearing replacement is ever needed.
We've included 3 semi-circular knockouts opposite of the snap-ring to assist in removal of our slip fit assembly.
***Installation note: It is extremely important with solid carrier bearing that your drive line is lined up correctly and operates smoothly.
Be sure that your differential has not been moved when using aftermarket mounts. Tap the bearing onto the shaft using a 1.5" tube on the inner race ONLY to prevent damage to the bearing.
Check that your driveshaft can spin easily by hand during and after installation. Loosen the motor diff and DCB and spin the driveshaft by hand while slowly tightening everything and lock down the DCB last.
A balanced shaft wouldnt hurt and if everything in the driveline is solid its a good idea to use a fresh stock guibo instead of an aftermarket aluminum and urethane one for the life of the transmission.
Listing is for:
1x Driveshaft Center Support carrier bearing
We could not justify an $800 one piece driveshaft at the shop M3s power level and also couldn't put in another thin rubber OEM center support to replace the torn one with all the drift clutch kicking, so we made this billet part to hold a top of the line FAG brand bearing instead.
Tons of you appeared to be in the same situation so we made some more for you in 6061 aluminum with gold anodizing & laser marks to indicate which side faces forward depending on if you will install it into an E36 or E46.
Comptible with M and Non-M models excluding AWD & 330d.
The affordable bearing can be replaced separately from the housing, if needed by removing lock ring and knocking the bearing out of the housing.
Contact us if a bearing replacement is ever needed.
We've included 3 semi-circular knockouts opposite of the snap-ring to assist in removal of our slip fit assembly.
***Installation note: It is extremely important with solid carrier bearing that your drive line is lined up correctly and operates smoothly.
Be sure that your differential has not been moved when using aftermarket mounts. Tap the bearing onto the shaft using a 1.5" tube on the inner race ONLY to prevent damage to the bearing.
Check that your driveshaft can spin easily by hand during and after installation. Loosen the motor diff and DCB and spin the driveshaft by hand while slowly tightening everything and lock down the DCB last.
A balanced shaft wouldnt hurt and if everything in the driveline is solid its a good idea to use a fresh stock guibo instead of an aftermarket aluminum and urethane one for the life of the transmission.

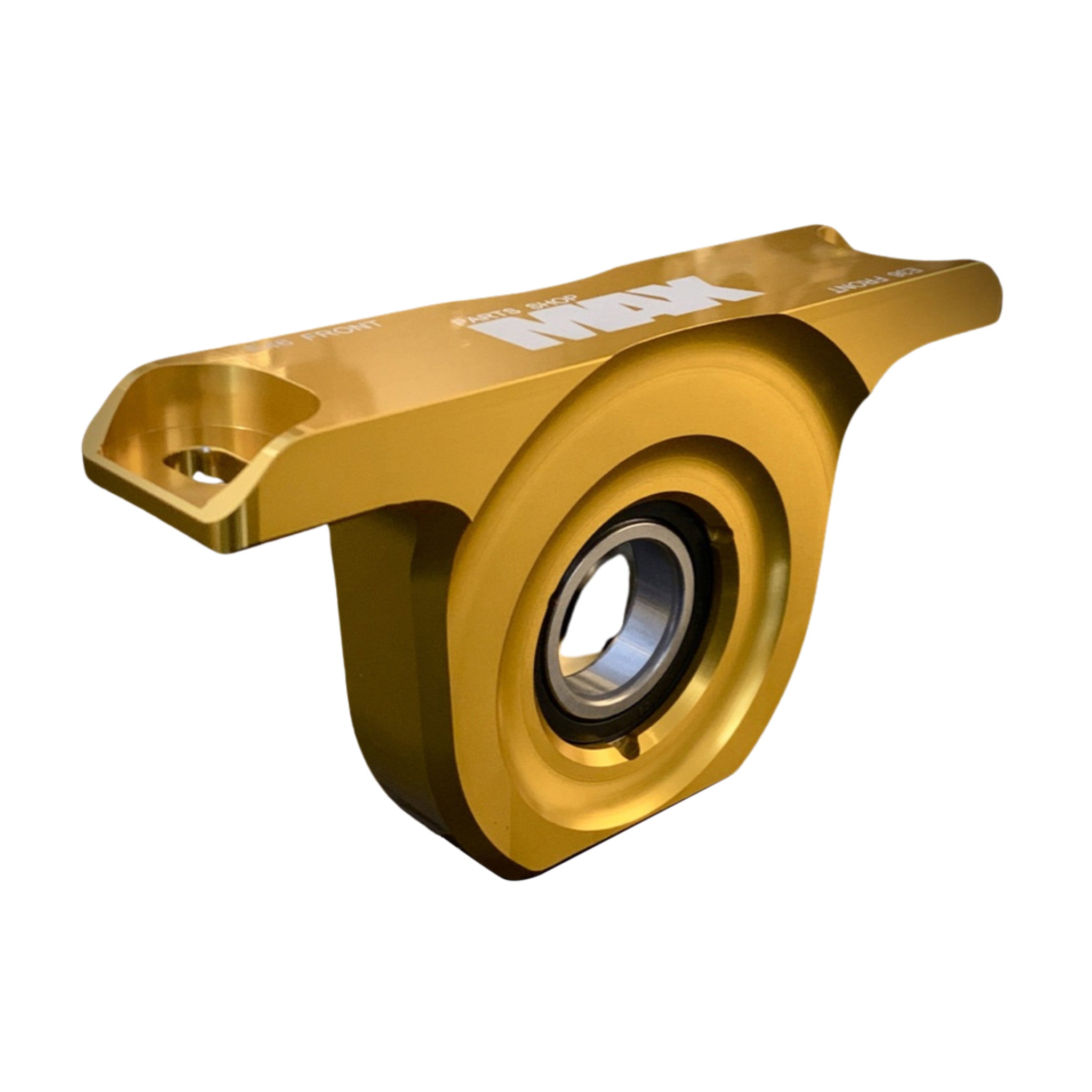

PSM E36 & E46 Driveshaft Center Support Carrier Bearing
- Regular price
- $299.99
- Sale price
- $299.99
- Regular price
-
Translation missing: en.products.product.sku:SCR PSM E3646DCB
Couldn't load pickup availability
