*Note* This product is currently order in from the Parts shop max Taiwan Factory. Roughly takes 1-2 weeks if in stock with Taiwan. You can check stock worldwide on the PSM website https://store.partsshopmax.com/ . If Taiwan is out of stock we can order from USA which may increase the price due to shipping costs from the states

Listing is for:

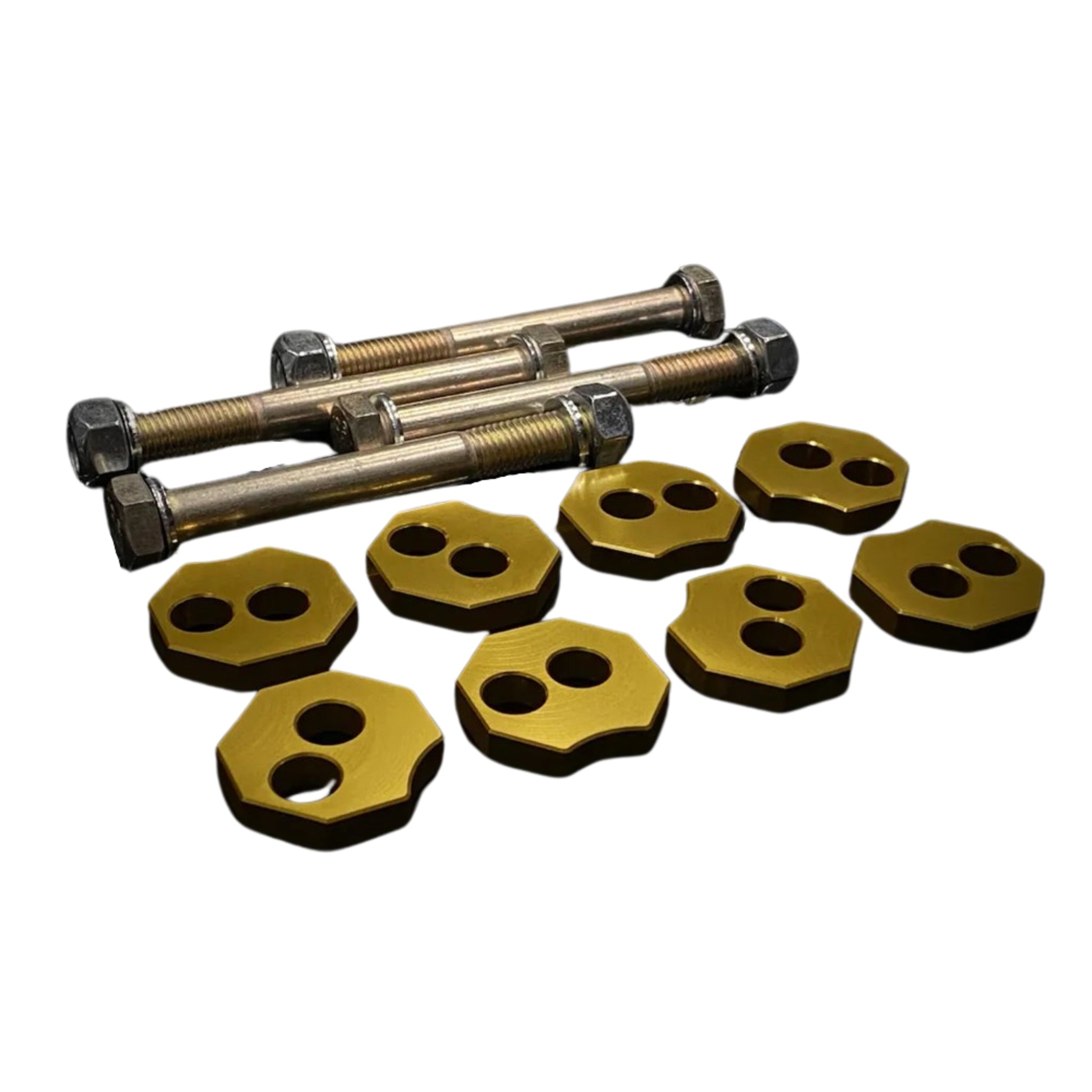

1x Camber lockout kit

Our C6 base corvette camber slot lockout kits design is a more interesting option than the two out there now.
(1)You need a set of 32 regular lockout plates to get these 8 settings.
(2)There?s an octagon camber kit on the market that moves the setting a different distance every time you rotate & there?s an eight page instruction on how to figure it out.

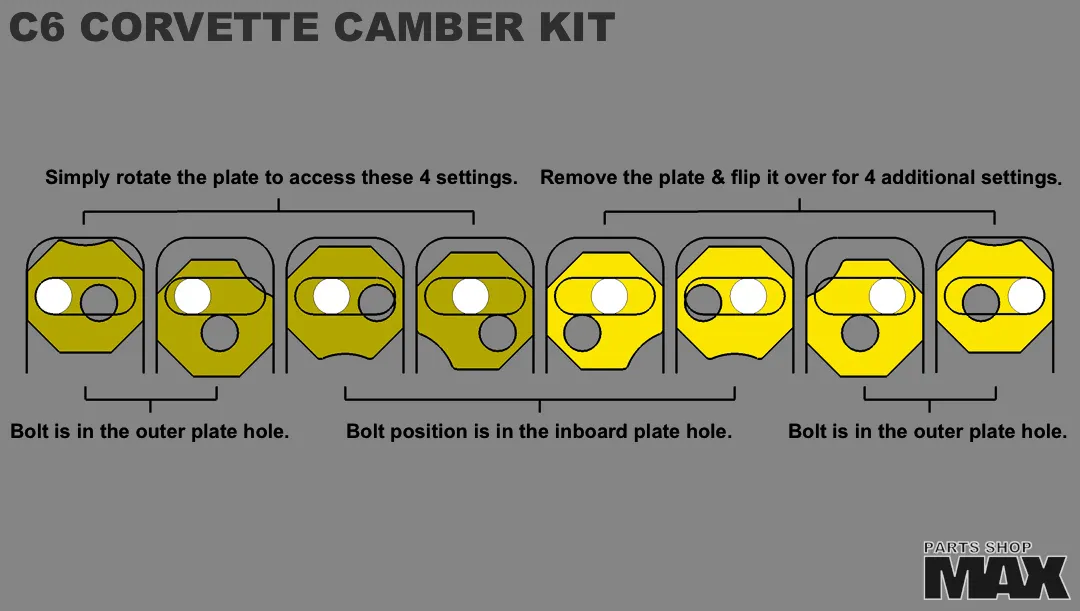

(3)Our set is only 8 identical pieces with hardware, with nothing to loose because it?s all bolted to the car and all 8 settings found in the yellow on grey diagram image in the gallery.
All moves are a consistent 3.46mm. 9mm thick 6061AL with 12.9 grade 130 length M14 hex bolts, flatwashers, and lock nuts.
You get everything you need for both front lower control arms. The negative camber is a combination of the ride height, shims or no shims in the upper arm, and the subframe slot position. We use the full subframe slot width, 24.25mm on center. On the more negative side that?s just going to increase by half the difference since the eccentric bolt exists on the middle of the full slot width.
