*Note* This product is currently order in from the Parts shop max Taiwan Factory. Roughly takes 1-2 weeks if in stock with Taiwan. You can check stock worldwide on the PSM website https://store.partsshopmax.com/ . If Taiwan is out of stock we can order from USA which may increase the price due to shipping costs from the states
Listing is for:

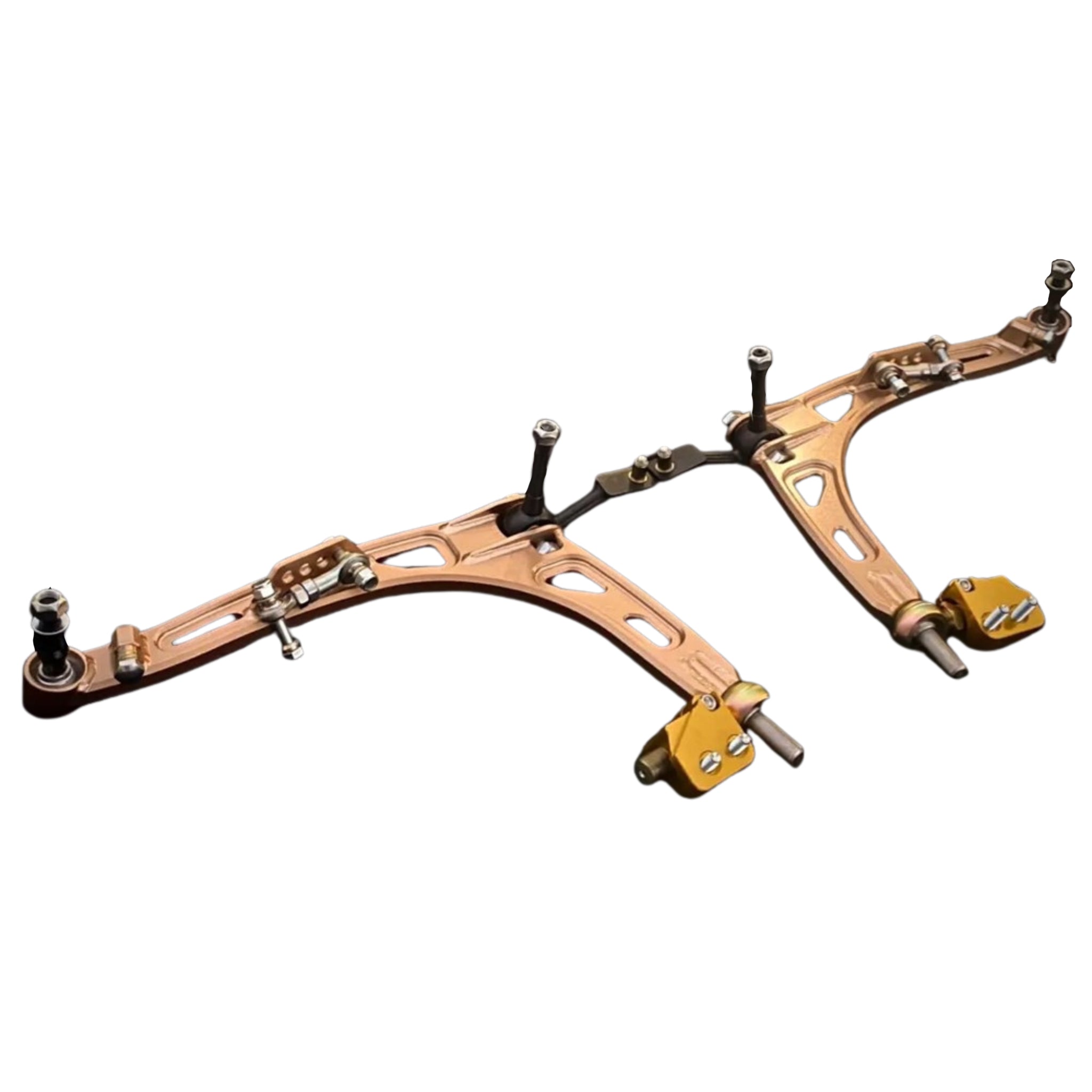

1x Pair of Lower control arms
New for 2024! E36 & E36M3 billet style front lower arms.
64mm wider than an OEM arm, per side.
Details
1?: Precision ground pin for caster adjuster. Any play there is magnified at the wheel so it?s uncoated. Use rust inhibitor on raw steel.
2?: That pin has a one piece shoulder for anti-shear & anti-separation of weld from the critical area during a crash.
3?: Laser cut steel plate absorbs crash energy well as proven in testing. Machining for weight reduction like billet with less cost.
4?: Inboard CrMo taper-pin / joint housing is 1pc. & triangulates the load to the subframe. We provide a rivet-nut & tool for E36 crossmembers that lack threads.
5?: Bearings are maintenance free with PTFE liners and are serviceable with our lock ring tool and loctite green bearing mount compound.
6?: The retained all metal locknut lets you drop the arm with one tool.
7?: The included sway bar link has an array of stroke adjustment holes that matches our responsive super angle clearance swaybar.
8?: Billet angle stop structure is tuned with our FORGED knuckle to prevent bump-stop-steer when your suspension moves while at full lock. Spacers with a variety of widths are provided to protect against bent threads on the custom domed hex adjuster-bolt.
9?: CrMo taper pin for OEM 316, 318, 320, 323, 325, 328 & M3 knuckle connection can swap out to a bolt connection through the 5/8"id bearing for use on a variety of aftermarket knuckles.
10: Precision billet aluminum anodised caster mounts with forged rod end. **Mounting a long FLCA and doubling the steering angle places more force on the very weak welds inside the frame rail at the 2 bolt caster mount.
We sell a weld in reinforcement with cover plate for your access hole.
Find SKU: E36FFR in the BMW SOLID BUSHING & CHASSIS REINFORCEMENT section of the site.
**The proper tie rod combination for this fixed length FLCA is our extended E36 inner with the upcoming 125mm hex length outer with a taper-pin or M14 bolt depending on your knuckle.
*Note* This product is currently order in from the Parts shop max Taiwan Factory. Roughly takes 1-2 weeks if in stock with Taiwan. You can check stock worldwide on the PSM website https://store.partsshopmax.com/ . If Taiwan is out of stock we can order from USA which may increase the price due to shipping costs from the states
Listing is for:
1x Pair of Lower control arms
New for 2024! E36 & E36M3 billet style front lower arms.
64mm wider than an OEM arm, per side.
Details
1?: Precision ground pin for caster adjuster. Any play there is magnified at the wheel so it?s uncoated. Use rust inhibitor on raw steel.
2?: That pin has a one piece shoulder for anti-shear & anti-separation of weld from the critical area during a crash.
3?: Laser cut steel plate absorbs crash energy well as proven in testing. Machining for weight reduction like billet with less cost.
4?: Inboard CrMo taper-pin / joint housing is 1pc. & triangulates the load to the subframe. We provide a rivet-nut & tool for E36 crossmembers that lack threads.
5?: Bearings are maintenance free with PTFE liners and are serviceable with our lock ring tool and loctite green bearing mount compound.
6?: The retained all metal locknut lets you drop the arm with one tool.
7?: The included sway bar link has an array of stroke adjustment holes that matches our responsive super angle clearance swaybar.
8?: Billet angle stop structure is tuned with our FORGED knuckle to prevent bump-stop-steer when your suspension moves while at full lock. Spacers with a variety of widths are provided to protect against bent threads on the custom domed hex adjuster-bolt.
9?: CrMo taper pin for OEM 316, 318, 320, 323, 325, 328 & M3 knuckle connection can swap out to a bolt connection through the 5/8"id bearing for use on a variety of aftermarket knuckles.
10: Precision billet aluminum anodised caster mounts with forged rod end. **Mounting a long FLCA and doubling the steering angle places more force on the very weak welds inside the frame rail at the 2 bolt caster mount.
We sell a weld in reinforcement with cover plate for your access hole.
Find SKU: E36FFR in the BMW SOLID BUSHING & CHASSIS REINFORCEMENT section of the site.
**The proper tie rod combination for this fixed length FLCA is our extended E36 inner with the upcoming 125mm hex length outer with a taper-pin or M14 bolt depending on your knuckle.
PSM E36 & E36M3 billet style +64mm fixed width front lower arms (Order in)
- Regular price
- $1,999.99
- Sale price
- $1,999.99
- Regular price
-
Translation missing: en.products.product.sku:SCR PSM E36FLCA
