*Note* This product is currently order in from the Parts shop max Taiwan Factory. Roughly takes 1-2 weeks if in stock with Taiwan. You can check stock worldwide on the PSM website https://store.partsshopmax.com/ . If Taiwan is out of stock we can order from USA which may increase the price due to shipping costs from the states
Listing is for:
1x Pair of Lower control arms
New for 2024! E46M3 billet style front lower arms. 44mm wider than an OEM arm, per side.
Details
1?: Precision ground pin for caster adjuster. Any play there would be magnified at the wheel so it?s uncoated. Use rust inhibitor on raw steel.
2?: That pin has a one piece shoulder for anti-shear & anti-separation of weld from the critical area during a crash.
3?: Laser cut steel plate absorbs crash energy well as proven in testing. CNC machined for weight reduction like billet with less cost.
4?: Inboard CrMo taper-pin / joint housing is 1pc. & triangulates the load to the subframe. This FLCA is cheaper because we dont need a rivet-nut & riv-nut tool. E46M3's already have threads in the crossmember.
5?: You don?t want the hassle of unseating that taper for a joint change. Bearings are maintenance free with PTFE liners and are serviceable with our lock ring tool and loctite green bearing mount compound.
6?: The retained all metal locknut lets you drop the arm with one tool.
7?: The included sway bar link has an array of stroke adjustment holes that matches our responsive super angle clearance swaybar.
8?: Billet angle stop structure is tuned with our E36 style knuckle to prevent bump-stop-steer when your suspension moves while at full lock. Spacers with a variety of width are provided to protect against bent threads on the custom domed hex adjuster-bolt.
9?: CrMo taper pin for OEM E46M3 knuckle connection can swap out to a bolt connection through the 5/8"id bearing for use on a variety of existing knuckles.
10: Precision billet aluminum anodized caster mounts with forged rod end.
**The proper tie rod combination for this fixed length FLCA is our extended E46 inner with the upcoming 94mm hex length outer with a taper-pin or M14 bolt depending on your knuckle.
*Note* This product is currently order in from the Parts shop max Taiwan Factory. Roughly takes 1-2 weeks if in stock with Taiwan. You can check stock worldwide on the PSM website https://store.partsshopmax.com/ . If Taiwan is out of stock we can order from USA which may increase the price due to shipping costs from the states
Listing is for:
1x Pair of Lower control arms
New for 2024! E46M3 billet style front lower arms. 44mm wider than an OEM arm, per side.
Details
1?: Precision ground pin for caster adjuster. Any play there would be magnified at the wheel so it?s uncoated. Use rust inhibitor on raw steel.
2?: That pin has a one piece shoulder for anti-shear & anti-separation of weld from the critical area during a crash.
3?: Laser cut steel plate absorbs crash energy well as proven in testing. CNC machined for weight reduction like billet with less cost.
4?: Inboard CrMo taper-pin / joint housing is 1pc. & triangulates the load to the subframe. This FLCA is cheaper because we dont need a rivet-nut & riv-nut tool. E46M3's already have threads in the crossmember.
5?: You don?t want the hassle of unseating that taper for a joint change. Bearings are maintenance free with PTFE liners and are serviceable with our lock ring tool and loctite green bearing mount compound.
6?: The retained all metal locknut lets you drop the arm with one tool.
7?: The included sway bar link has an array of stroke adjustment holes that matches our responsive super angle clearance swaybar.
8?: Billet angle stop structure is tuned with our E36 style knuckle to prevent bump-stop-steer when your suspension moves while at full lock. Spacers with a variety of width are provided to protect against bent threads on the custom domed hex adjuster-bolt.
9?: CrMo taper pin for OEM E46M3 knuckle connection can swap out to a bolt connection through the 5/8"id bearing for use on a variety of existing knuckles.
10: Precision billet aluminum anodized caster mounts with forged rod end.
**The proper tie rod combination for this fixed length FLCA is our extended E46 inner with the upcoming 94mm hex length outer with a taper-pin or M14 bolt depending on your knuckle.

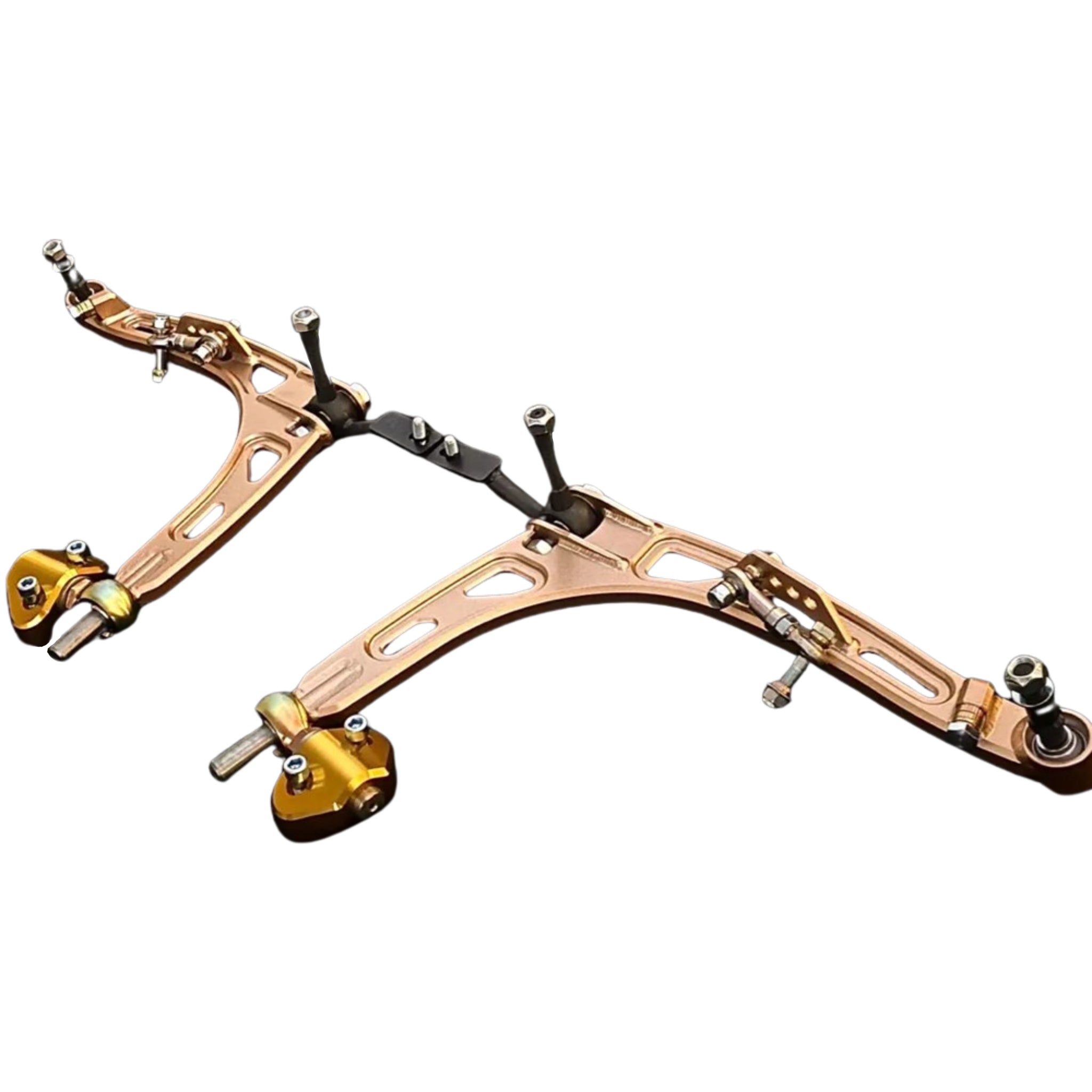

PSM E46M3 billet style +44mm fixed width front lower arms (Order in)
