*Note* This product is currently order in from the Parts shop max Taiwan Factory. Roughly takes 1-2 weeks if in stock with Taiwan. You can check stock worldwide on the PSM website https://store.partsshopmax.com/ . If Taiwan is out of stock we can order from USA which may increase the price due to shipping costs from the states
Listing is for:
1x Pair of front upper arms

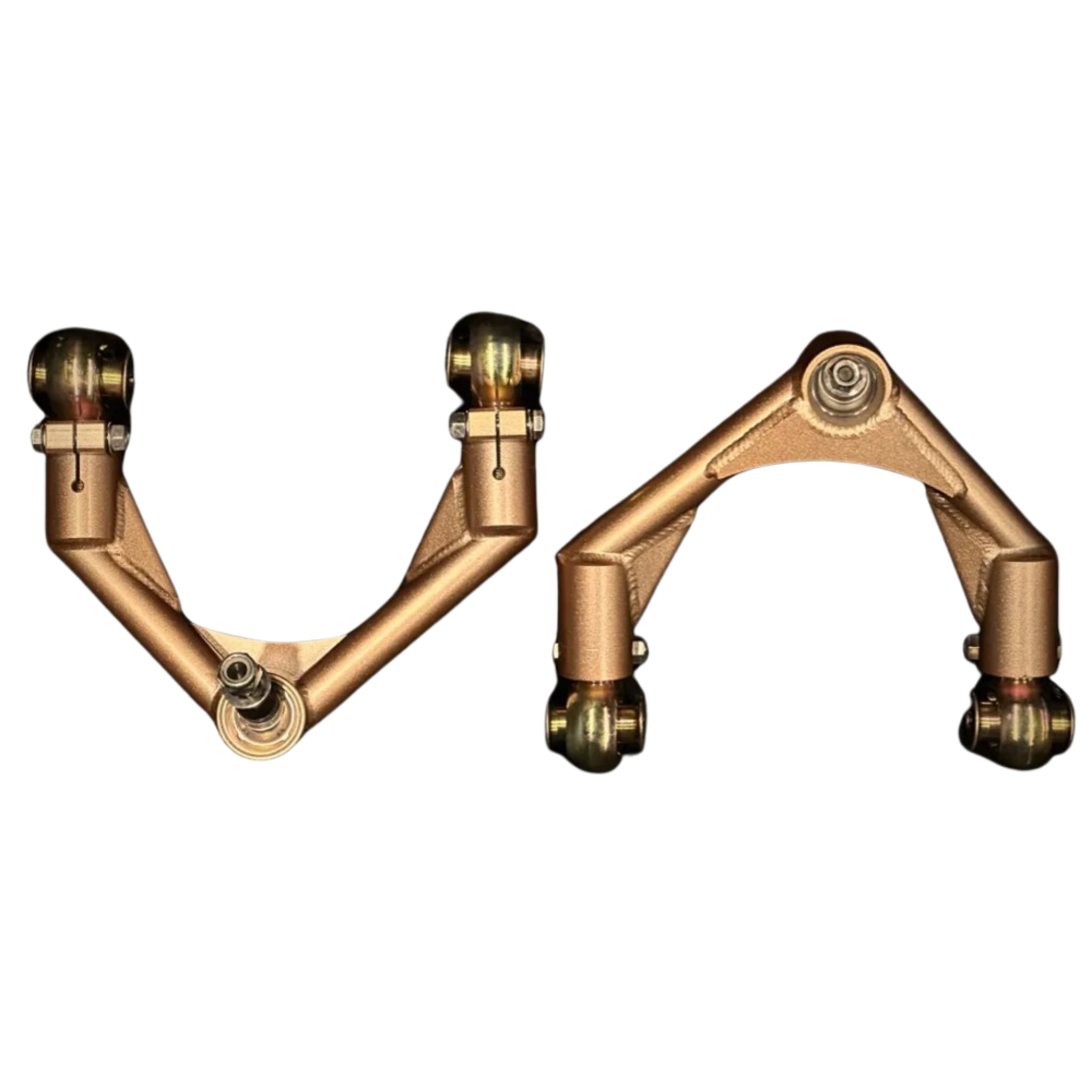

Pair of adjustable front upper control arms for JZX90 and 100. Adjusts -10mm width (for added negative camber with a stock FLCA) to +17mm width (for added steering clearance with a lengthened FLCA).
Tig welded Japanese DOM tube 1/8" wall reinforced with a laser cut and CNC brake bent plate.
Clamping rod end receivers. Forged rod ends with PTFE lined maintenance free, low torque spherical bearings & high surface area bearing side spacers.
Replaceable chromoly taper pin for OEM knuckle. Sold in Pairs.
**Intended use** The outer joint range of motion is optimized for use with a shortened knuckle gooseneck as seen with our -40mm knuckle LKMOD service.
It's best paired with a lengthened front lower arm for negative camber desired by both drifters and stance builds.
It's joint range of motion is not ideal (and your suspension travel suffers) on a low camber, lowered street car with a stock lower arm and knuckle.
*Note* This product is currently order in from the Parts shop max Taiwan Factory. Roughly takes 1-2 weeks if in stock with Taiwan. You can check stock worldwide on the PSM website https://store.partsshopmax.com/ . If Taiwan is out of stock we can order from USA which may increase the price due to shipping costs from the states
Listing is for:
1x Pair of front upper arms
Pair of adjustable front upper control arms for JZX90 and 100. Adjusts -10mm width (for added negative camber with a stock FLCA) to +17mm width (for added steering clearance with a lengthened FLCA).
Tig welded Japanese DOM tube 1/8" wall reinforced with a laser cut and CNC brake bent plate.
Clamping rod end receivers. Forged rod ends with PTFE lined maintenance free, low torque spherical bearings & high surface area bearing side spacers.
Replaceable chromoly taper pin for OEM knuckle. Sold in Pairs.
**Intended use** The outer joint range of motion is optimized for use with a shortened knuckle gooseneck as seen with our -40mm knuckle LKMOD service.
It's best paired with a lengthened front lower arm for negative camber desired by both drifters and stance builds.
It's joint range of motion is not ideal (and your suspension travel suffers) on a low camber, lowered street car with a stock lower arm and knuckle.
