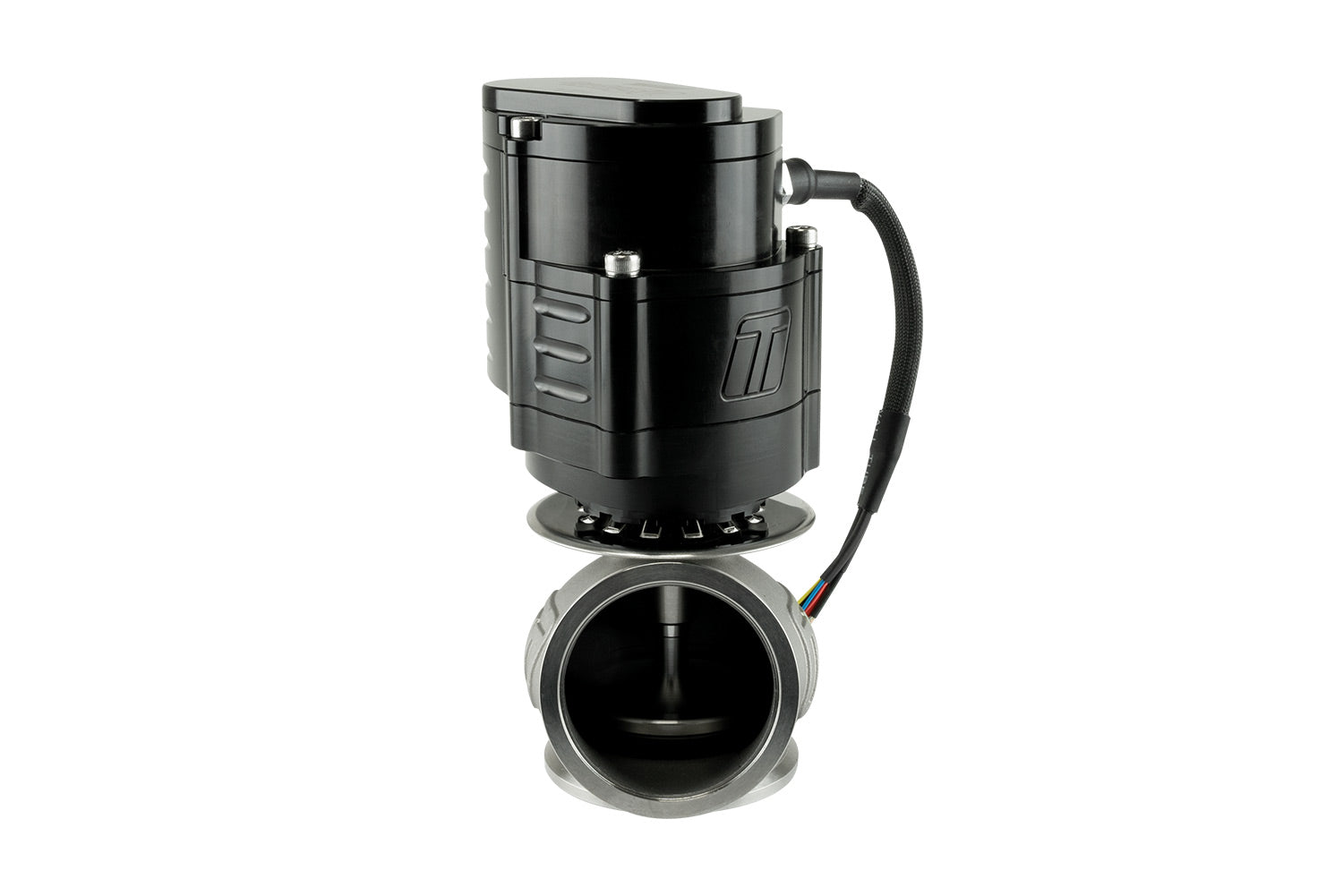

Turbosmart GenV eWG50 Progate50 Electronic Black (Order in)

SKU: SCR TST0662

$1,500.70

*NOTE* This product is not currently stocked in store, takes 2-5 working days to get in

Turbosmart Patent Pending, eWG50 is a fully electronic actuated wastegate Built on the successful, class-leading GenV ProGate50 architecture, now with the kind of control never seen before. The eGG50 ProGate50 is a 50mm Electronic Wastegate which uses full electronic control without the limitation associated with traditional pneumatic control.

Starting with a Turbosmart GenV wastegate body, you can be confident the mounting orientation will match your existing manifold and outlet hardware. The GenV ProGate50 already had class-leading flow capacity and heat handling characteristics. Now featuring the Turbosmart Patent Pending eWG actuator system, you can also be sure of unparalleled control.

There are no springs, no hoses, no boost reference signal, nor any associated limitations. Gone are Minimum boost levels associated with base spring pressure or heat-related issues with hoses. If your manifold priority is good enough, you can set your boost anywhere from zero up to All of it All from your laptop or tuning interface. The eGate range requires a Dual Half-Bridge input for control, much like how an electronic throttle body is controlled and the strategy is as good as your imagination and your ECU or controller will allow.

Don't have an ECU that has a spare Dual Half-Bridge Output? No problem at all, checkout the Turbosmart BlackBox Electronic Wastegate Controller with up to 2 independant channels via simple PWM inputs, or more advanced CAN based inputs All onboard and in the one unit!

Available in
40mm CompGate40 eWG TS-0552-1502
45mm HyperGate45 eWG TS-0553-1502
50mm ProGate50 eWG TS-0554-1502
60mm PowerGate60 eWG TS-0555-1502
StriaghtGate50 eWG TS-0565-1002

Features
Class Leading, CFD and Bench Validated Flow Performance
Nitronic 60 Valve Guide and High Temp 347 SS Body
Liquid Cooled, Electronic Actuator
Strap Type V-band clamps
User Adjustable Actuator Position
Onboard Analog 0-5V Wastegate Position Sensor
Onboard Analog 0-5V Actuator Temperature Sensor
Onboard Digital (PWM) Wastegate Position Sensor
