Scarles

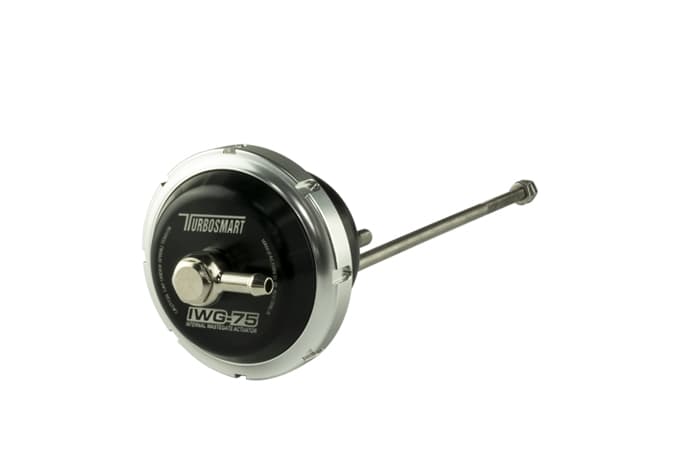

Turbosmart IWG75 Wastegate Actuator Suit VAG K04 Variant 5psi (Order in)

SKU: SCR TST2494

$284.57

*NOTE* This product is not currently stocked in store, takes 2-5 working days to get in

Turbosmart Upgraded Wastegate Actuators have been developed to provide the maximum possible boost response for your factory frame turbocharger. The Turbosmart IWG75 Series of upgraded Actuators benefit from an increased Working Ratio over the factory equipment resulting in improved boost response throughout the RPM range.

This Improved Working Ratio is achieved through an increase to the effective surface area of the diaphragm and revisions to the actual springs fitted, resulting in greater leverage of the forces the actuator is working against (boost and backpressure) while still being super-responsive.

Upgrading with the same base pressure as the factory, you can expect a broader boost and torque curve through peak boost being achieved earlier in the RPM and being held longer into higher RPM. These improvements can be amplified with higher base pressures, however, tuning and recalibration is likely required.

Features
Proprietary Silicon Nomex Diaphragm
Choice of Springs from 3psi to 26psi (Optional)
High-Grade Billet Aluminum Construction
Stainless Steel Rods and Clevis
Turbosmart Unique Locking Collar System

SUITABLE FOR
This is a bolt-on fitment for the K04 Turbocharger as factory fitted to the MK6 VAG 2.0 TFSI range of applications, including; Audi A1 Quatro, Audi S3, Audi S4, Audi S5, Audi TTS, VW Golf R and VW Scirroco R.

...
...
...
...
