*NOTE* This product is not currently stocked in store, takes 2-5 working days to get in

Listing is for:

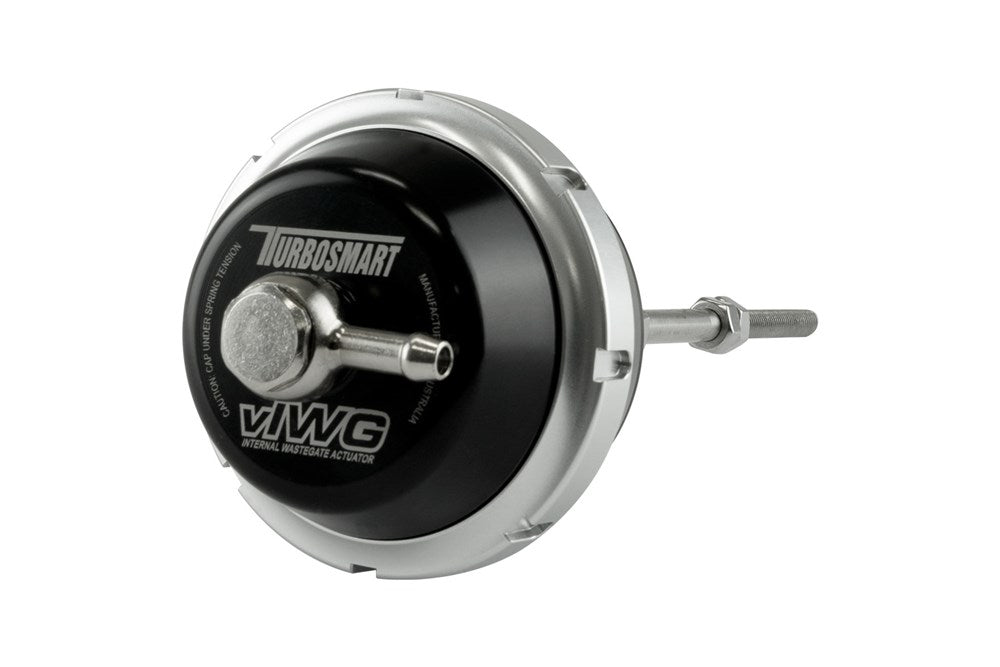

vIWG Wastegate Actuator
3-different length rods to suit Borg Warner turbo types
Springs Pre-Fitted as per Description
Required Fasteners & Swivel Hose Barb
Turbosmart Decal

Turbosmart Upgraded Vacuum-operated Wastegate Actuators have been developed to provide the maximum possible boost response for your factory frame turbocharger. The Turbosmart vIWG Series of upgraded Actuators benefit from an increased ?Working Ratio? over the factory equipment resulting in improved boost response throughout the RPM range.

This Improved ?working ratio? is achieved through an increase to the effective surface area of the diaphragm & revisions to the actual springs fitted, resulting in greater leverage of the forces the actuator is working against (boost and backpressure) while still being super-responsive.

Upgrading with the same base pressure as the factory, you can expect a broader boost & torque curve through peak boost being achieved earlier in the RPM and being held longer into higher RPM. These improvements can be amplified with higher base pressures. However, tuning & recalibration is recommended for optimal performance.

Features
Proprietary Silicon Nomex Diaphragm
High-Grade Billet Aluminum Construction
Stainless Steel Rod
Turbosmart Unique Locking Collar System
3 Secondary rods are included ensuring fitment to all B1 & B2 single & twin scroll EFRs

This is a Borg Warner turbo-specific Vacuum operated vIWG Actuator with a 57mm diaphragm, supplied with 3 Secondary rods to ensure fitment to all B1 & B2 single & twin scroll EFRs.

Suits:
Borg Warner EFR B1 Single Scroll
Borg Warner EFR B1 Twin Scroll
Borg Warner EFR B2 Single Scroll
Borg Warner EFR B2 Twin Scroll
*Fits all BW EFR Internally Wastegated turbos ? All required rods included
